Cooling system coolant hoses for BMW 2 Series F22 M240iX (2017)

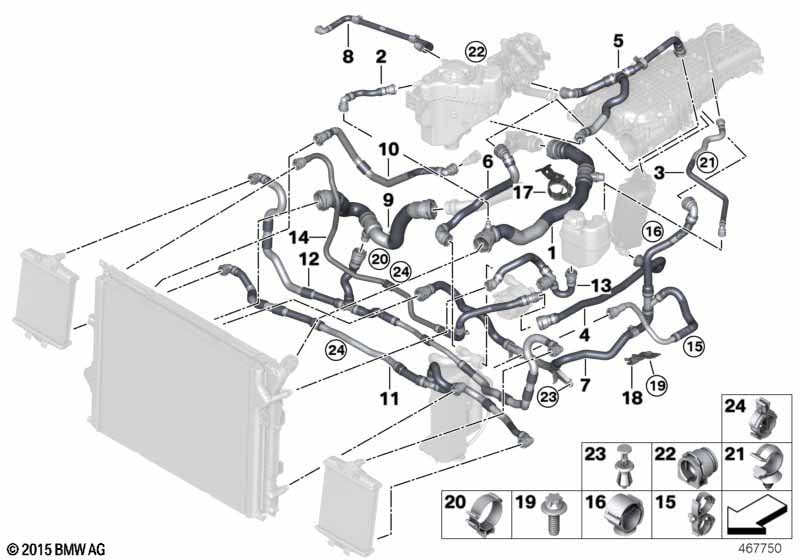

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 M240iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission or Sport automatic transmission and vehicles produced from 03/01/2016 |
S205A=Yes S2TBA=Yes |
||||||||
| 01 | Hose from engine to radiator, top | 1 | 17128616548 | Shop at ECS Tuning | ||||||
| 02 | Hose between radiator-expansion tank | 1 | 17128620944 | Shop at ECS Tuning | ||||||
| 03 | Hose, charge air cooler- | 1 | 17128616530 | Shop at ECS Tuning | ||||||
| 04 | Hose, radiator | 1 | 17128673993 | Shop at ECS Tuning | ||||||
| 05 | Hose, expansion tank- | 1 | 17128616558 | Shop at ECS Tuning | ||||||
| 06 | Hose coolant pump | 1 | 17128634284 | Shop at ECS Tuning | ||||||
| 07 | Hose, radiator-engine | 1 | 17128634283 | Shop at ECS Tuning | ||||||
| 08 | Pipe, cylinder head- | 1 | 17128616555 | Shop at ECS Tuning | ||||||
| 09 | Hose, radiator-engine | 1 | 17128633482 | Shop at ECS Tuning | ||||||
| 10 | Hose, engine block- | 1 | 17128633480 | Shop at ECS Tuning | ||||||
| 11 | Hose, radiator | 1 | 17128633483 | Shop at ECS Tuning | ||||||
| 12 | Hose, remote radiator- | 1 | 17128633484 | Shop at ECS Tuning | ||||||
| 13 | Line, expansion tank- | 1 | 17128616531 | Shop at ECS Tuning | ||||||
| 14 | Pipe, heat exchanger- | 1 | 17128674162 | Shop at ECS Tuning | ||||||
| 15 | Dual clip | D=19-22 | 1 | 17128608773 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 17 | Hose clamp | 1 | 17128632635 | Shop at ECS Tuning | ||||||
| 18 | Metal bracket | 1 | 17128616817 | Shop at ECS Tuning | ||||||
| 19 | ASA screw, self-threading | M6X16 | 1 | 34509804151 | Shop at ECS Tuning | |||||
| 20 | Edge clip | D=38-40MM | 1 | 17128636334 | Shop at ECS Tuning | |||||
| 21 | Tubing support | D16-18 | 1 | 07147308194 | Shop at ECS Tuning | |||||
| 22 | Blind plug | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 23 | Expanding rivet | 1 | 17127620959 | Shop at ECS Tuning | ||||||
| 24 | Hose clamp | 1 | 17127599703 | Shop at ECS Tuning | ||||||
