Trans. oil cooler line / heat exchanger for BMW 2 Series F87 M2 LCI M2 (2018)

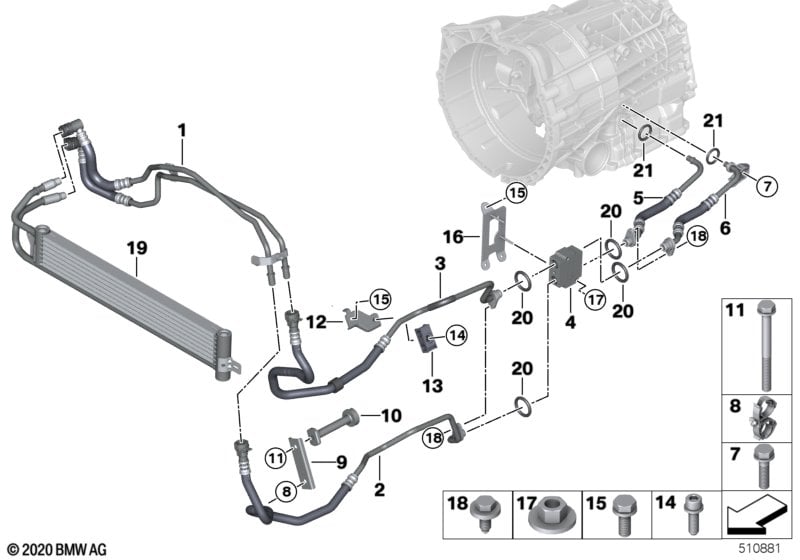

This Trans. oil cooler line / heat exchanger technical drawing provides a detailed breakdown of the assembly for the 2 Series F87 M2 LCI M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M double-clutch transmiss. w/Drivelogic |
S2MKA=Yes |
||||||||
| 01 | Transmission oil cooler line | 1 | 17227856727 | Shop at ECS Tuning | ||||||
| 02 | Transmission oil cooler line, flow | 1 | 17227853889 | Shop at ECS Tuning | ||||||
| 03 | Transmission oil cooler line, return | 1 | 17227853890 | Shop at ECS Tuning | ||||||
| 04 | Thermostat, oil cooler line | 1 | 17227592723 | Shop at ECS Tuning | ||||||
| 05 | Transmission oil cooler line, flow | 1 | 17222284548 | Shop at ECS Tuning | ||||||
| 06 | Transmission oil cooler line, return | 1 | 17222284549 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X30-ZNNIV SI | 1 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 08 | Dual clip | D=19-22 | 1 | 17128608773 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | 1 | 17227853590 | Shop at ECS Tuning | ||||||
| 10 | Spacer pin | 1 | 17227853589 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M6X95-U1 | 1 | 07119905433 | $3.35 | Shop at ECS Tuning | ||||
| 12 | Mounting transmission oil cooling line | 1 | 17227853588 | Shop at ECS Tuning | ||||||
| 13 | Bracket oil pipe | 1 | 17227519270 | $3.52 | Shop at ECS Tuning | |||||
| 14 | Fillister head with washer | M6X25-U2 | 1 | 07119905014 | $1.54 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Support | 1 | 17227850363 | Shop at ECS Tuning | ||||||
| 17 | Hex nut with plate | M5-8-ZNNIV SI | 2 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 19 | Heat exchanger | 1 | 17212409076 | Shop at ECS Tuning | ||||||
| 20 | O-ring | 13,94X2,62 | 4 | 17227613656 | Shop at ECS Tuning | |||||
| 21 | O-ring | 10,82X1,78/HNBR | 2 | 17227581147 | $1.18 | Shop at ECS Tuning | ||||
