Cooling system coolant hoses for BMW 7 Series G11 750dX (2019)

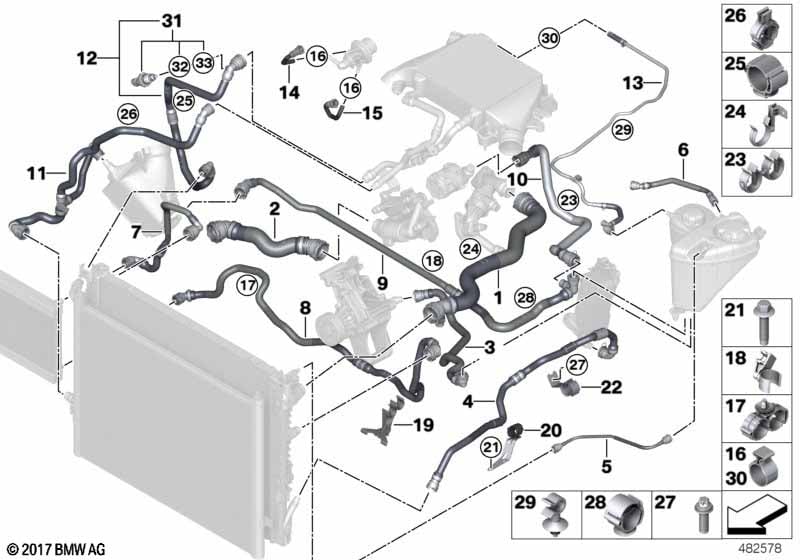

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 750dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator-engine | 1 | 17128575764 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator-engine | 1 | 17128575765 | Shop at ECS Tuning | ||||||
| 03 | Hose for expansion tank | 1 | 17128575766 | Shop at ECS Tuning | ||||||
| 04 | Hose, radiator | 1 | 17128575767 | Shop at ECS Tuning | ||||||
| 05 | Hose, radiator | 1 | 17128598387 | Shop at ECS Tuning | ||||||
| 06 | Hose, cylinder head-expansion tank | 1 | 17128579940 | Shop at ECS Tuning | ||||||
| 07 | Hose, radiator | 1 | 17128580213 | Shop at ECS Tuning | ||||||
| 08 | Hose, radiator | 1 | 17128602633 | Shop at ECS Tuning | ||||||
| 09 | Line from radiator | 1 | 17128580712 | Shop at ECS Tuning | ||||||
| 10 | Hose for expansion tank | 1 | 17128575774 | Shop at ECS Tuning | ||||||
| 11 | Line from radiator | 1 | 17128475301 | Shop at ECS Tuning | ||||||
| 12 | Line for external radiator | 1 | 17128590690 | Shop at ECS Tuning | ||||||
| 13 | Pipe, intake system-expansion tank | 1 | 17128575748 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 14 | Hose for SCR metering module | 1 | 17128575773 | Shop at ECS Tuning | ||||||
| 15 | Hose for cylinder head | 1 | 17128575775 | Shop at ECS Tuning | ||||||
| 16 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose for SCR metering module | 1 | 17128575773 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Hose for SCR metering module | X | 17128575773 | Shop at ECS Tuning | ||||||
| 16 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose for cylinder head | 1 | 17128575775 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Hose for cylinder head | X | 17128575775 | Shop at ECS Tuning | ||||||
| 17 | Hose clamp, double | 1 | 32417849652 | Shop at ECS Tuning | ||||||
| 18 | Hose clamp | 2 | 17123417852 | Shop at ECS Tuning | ||||||
| 19 | Bracket, radiator | 2 | 17128632287 | Shop at ECS Tuning | ||||||
| 20 | Bracket, coolant hose | 1 | 17128619737 | Shop at ECS Tuning | ||||||
| 21 | Screw self-tapping | M6X25- 10.9 ZNS | 2 | 34306771214 | $1.08 | Shop at ECS Tuning | ||||
| 22 | Bracket, coolant hose | 1 | 17128632153 | Shop at ECS Tuning | ||||||
| 23 | Hose clamp | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 24 | Clip for coolant hose | 1 | 17128584228 | Shop at ECS Tuning | ||||||
| 25 | Hose clamp | D=23MM | 2 | 17127619358 | Shop at ECS Tuning | |||||
| 26 | Hose clamp | 1 | 17123417852 | Shop at ECS Tuning | ||||||
| 27 | Torx bolt | M8X25 8.8 ZNS3 | 1 | 07119908535 | Shop at ECS Tuning | |||||
| 28 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 29 | Bracket for coolant line | 2 | 11538571359 | Shop at ECS Tuning | ||||||
| 30 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 31 | Coolant temperature sensor | 1 | 13627823993 | Shop at ECS Tuning | ||||||
| 32 | O-ring | 5,6X2 | 1 | 13627807005 | Shop at ECS Tuning | |||||
| 33 | O-ring | 9,3X2,2 | 1 | 13627807006 | Shop at ECS Tuning | |||||
