Coolant hoses / mounted components for BMW 7 Series G12 725Ld (2018)

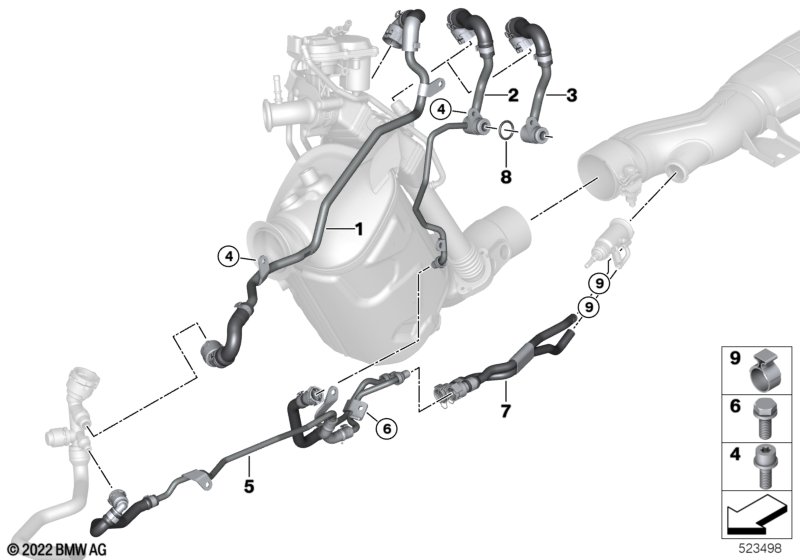

This Coolant hoses / mounted components technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 725Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Line for coolant pump | 1 | 11538576310 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 02 | Pipe for cylinder crankcase | 1 | 11538576311 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 03 | Pipe for cylinder crankcase | 1 | 11538581290 | Shop at ECS Tuning | ||||||
| 04 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 4 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 05 | Line for coolant pump | 1 | 03/2018 | 11538473964 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hose for SCR metering module | 1 | 03/2018 | 17128473961 | Shop at ECS Tuning | |||||
| 08 | O-ring | 16X2,5 | 1 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
