Expansion tank for BMW 2 Series F45 Active Tourer LCI 225i (2019)

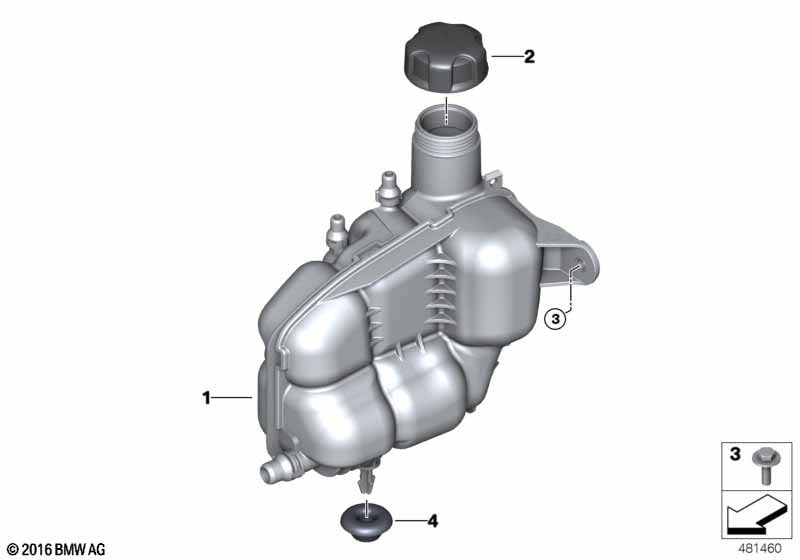

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 225i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17138687503 | Shop at ECS Tuning | ||||||
| 02 | Cover lid | 1 | 01/2023 | 17117639024 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw plug, expansion tank | 1 | 17135A1BD89 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M6X20 | 1 | 07149905728 | Shop at ECS Tuning | |||||
| 04 | Grommet | 1 | 64126910076 | $1.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer LCI 225i Expansion tank?
- This technical diagram illustrates the Expansion tank within the Radiator group for the 2 Series F45 Active Tourer LCI 225i produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #17138687503).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 2 Series F45 Active Tourer LCI 225i produced during 2019. These technical specifications ensure that parts like the Expansion tank (17138687503) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer LCI 225i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 17138687503 for the Radiator section.
