Cooling system coolant hoses for BMW 7 Series F01 LCI 740i (2015)

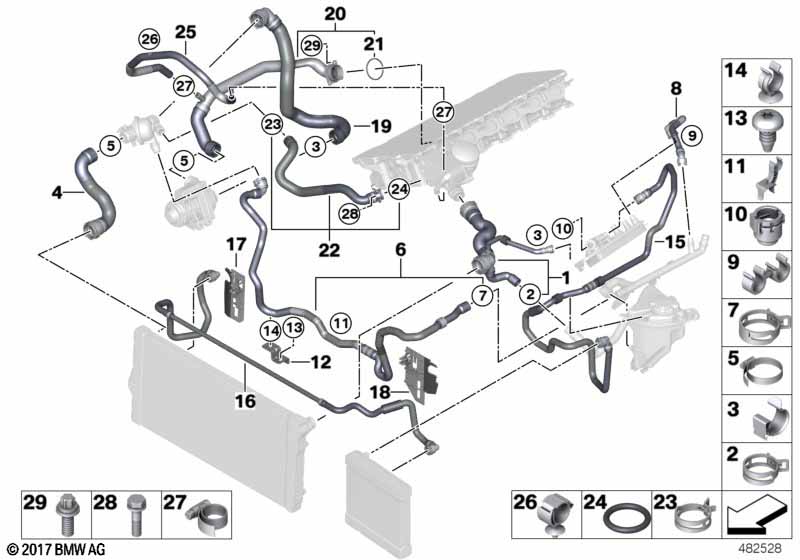

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Hot-climate version or High speed synchronisation and vehicles produced from 07/01/2013 |
S823A=Yes S840A=Yes |
||||||||
| 01 | Coolant hose | 1 | 17127580957 | Shop at ECS Tuning | ||||||
| 02 | Spring ring shell | D=28MM | 1 | 64219182743 | Shop at ECS Tuning | |||||
| 03 | Cable clamp | D=19-24/B=5 | 1 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| 04 | Coolant hose | 1 | 17127605640 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | L42-48 | 5 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 06 | Coolant hose | 1 | 17127605641 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp | D=30MM | 1 | 64219174341 | Shop at ECS Tuning | |||||
| 08 | Coolant hose | 1 | 17127580962 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | D=18/20 | 1 | 17221341603 | $1.87 | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| 11 | Bracket, coolant hose | 1 | 17127583106 | Shop at ECS Tuning | ||||||
| 12 | Bracket, coolant hose | 2 | 17127585276 | Shop at ECS Tuning | ||||||
| 13 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | 2 | 07147506219 | $0.91 | Shop at ECS Tuning | |||||
| 15 | Hose, transmission oil cooler- | 1 | 17128614882 | Shop at ECS Tuning | ||||||
| 16 | Hose, remote, coolant radiator | 1 | 17128614883 | Shop at ECS Tuning | ||||||
| 17 | Clip | RECHTS | 1 | 17127613139 | Shop at ECS Tuning | |||||
| 18 | Clip | LINKS | 1 | 17127613140 | Shop at ECS Tuning | |||||
| 19 | Coolant hose | 1 | 11537605150 | +core | Shop at ECS Tuning | |||||
| 20 | Feed line | 1 | 11537607840 | +core | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 20 | Hose, radiator | 1 | 17128614881 | Shop at ECS Tuning | ||||||
| 21 | Gasket | 1 | 11537584829 | Shop at ECS Tuning | ||||||
| 22 | Coolant hose | 1 | 11537605152 | Shop at ECS Tuning | ||||||
| 23 | Hose clamp | D=29MM | 1 | 64112755596 | Shop at ECS Tuning | |||||
| 24 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 25 | Water hose, inlet, thermostat | 1 | 11537598496 | +core | Shop at ECS Tuning | |||||
| 26 | Hose clamp | 1 | 11537599270 | Shop at ECS Tuning | ||||||
| 27 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 28 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 29 | ASA-Bolt | M6X16 ZNNIV SI | 3 | 07129905905 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
