Cooling system coolant hoses for BMW 2 Series F46 Gran Tourer 218i (2018)

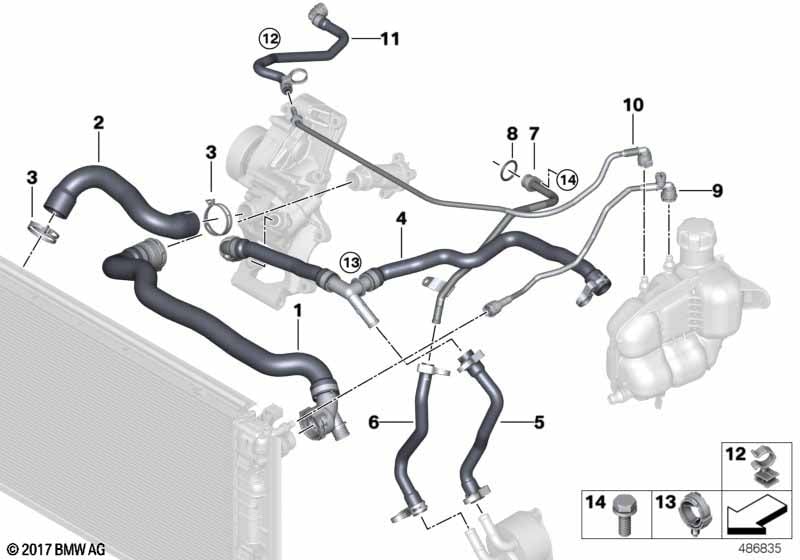

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator-engine | 1 | 17127617363 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator top-thermostat | 1 | 17127617364 | Shop at ECS Tuning | ||||||
| 03 | Clamp | D=40MM | 2 | 17122754490 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Line, coolant pump-heat exchanger- | 1 | 17127617376 | Shop at ECS Tuning | ||||||
| 05 | Hose, transmission oil cooler- | 1 | 17127617373 | Shop at ECS Tuning | ||||||
| 06 | Hose for cylinder head | 1 | 17128606014 | Shop at ECS Tuning | ||||||
| 07 | Refrigerant pipe | 1 | 17128606015 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 16X2,5 | 1 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 09 | Pipe, radiator-expansion tank | 1 | 17127617366 | Shop at ECS Tuning | ||||||
| 10 | Pipe, expansion tank-cylinder head | 1 | 17127646898 | Shop at ECS Tuning | ||||||
| 11 | Hose, expansion tank-cylinder head | 1 | 17128647256 | Shop at ECS Tuning | ||||||
| 12 | Cable clamp | 2 | 08/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 12 | Clip | 15-19 | 2 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | 1 | 17127615464 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning |
