Cooling system - Engine coolant hoses for BMW 4 Series F36 Gran Coupé LCI 420dX (2020)

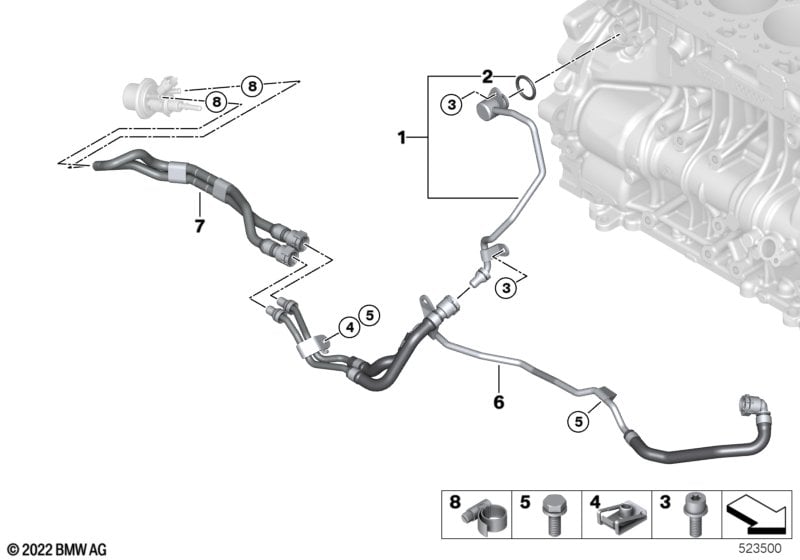

This Cooling system - Engine coolant hoses technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé LCI 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU5 |
S161A=No |
||||||||
| 01 | Line, engine block SCR module | 1 | 11538579226 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 16X2,5 | 1 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 03 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 2 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Clip nut | M6 | 1 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Line from SCR metering module-water pump | 1 | 11538473963 | Shop at ECS Tuning | ||||||
| 07 | Line for metering module supply/return | 1 | 17128473962 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Line for metering module supply/return | 1 | 17128473962 | Shop at ECS Tuning | ||||||
