Cooling system coolant hoses for BMW 5 Series G30 520d (2020)

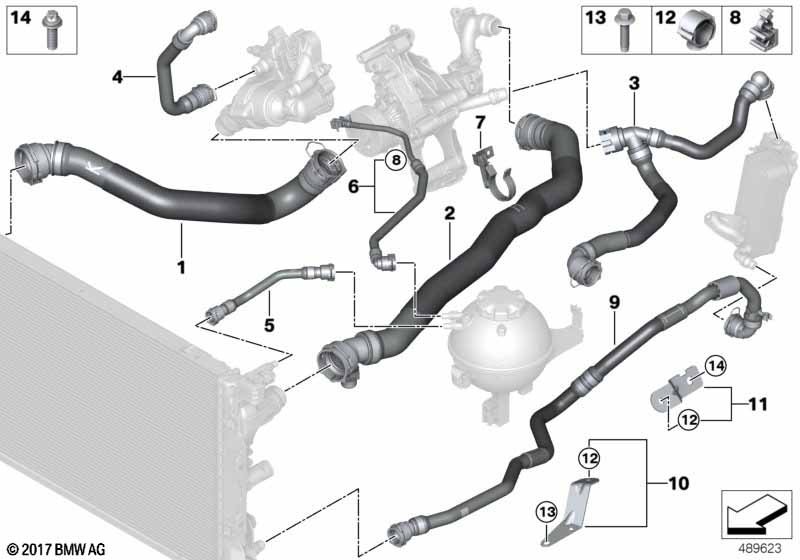

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
||||||||
| 01 | Hose, radiator | 1 | 17128581029 | Shop at ECS Tuning | ||||||
| 02 | Hose coolant pump | 1 | 17128581028 | Shop at ECS Tuning | ||||||
| 03 | Hose transmission oil cooler | 1 | 17128592808 | Shop at ECS Tuning | ||||||
| 04 | Line for coolant pump | 1 | 11538473704 | Shop at ECS Tuning | ||||||
| 05 | Hose, radiator | 1 | 17128573221 | Shop at ECS Tuning | ||||||
| 06 | Line, cylinder head-expansion tank | 1 | 17127827376 | Shop at ECS Tuning | ||||||
| 07 | Clip for coolant hose | 1 | 17128584228 | Shop at ECS Tuning | ||||||
| 08 | Cable strap with bracket | L=200MM | 1 | 34327708473 | Shop at ECS Tuning | |||||
| 09 | Hose transmission oil cooler | 1 | 17128598384 | Shop at ECS Tuning | ||||||
| 10 | Bracket, coolant hose | 1 | 17128619737 | Shop at ECS Tuning | ||||||
| 11 | Bracket, coolant hose | 1 | 17128632284 | Shop at ECS Tuning | ||||||
| 12 | Hose clamp | 2 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 13 | Screw self-tapping | M6X25- 10.9 ZNS | 2 | 34306771214 | $1.08 | Shop at ECS Tuning | ||||
| 14 | Torx bolt | M8X25 8.8 ZNS3 | 1 | 07119908535 | Shop at ECS Tuning | |||||
