Cooling system - Engine coolant hoses for BMW 5 Series G30 520dX (2020)

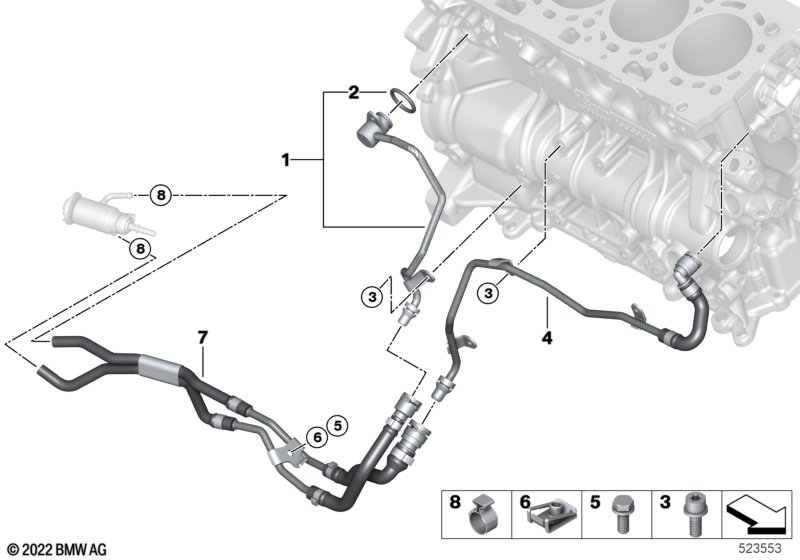

This Cooling system - Engine coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe for cylinder crankcase | 1 | 11538471773 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 16X2,5 | 1 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 03 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 5 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Line for coolant pump | 1 | 11538580972 | Shop at ECS Tuning | ||||||
| 07 | Line from SCR metering module-water pump | 1 | 17128581027 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | 10-12 | 2 | 32411131373 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Line from SCR metering module-water pump | 1 | 17128581027 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 520dX Cooling system - Engine coolant hoses?
- This technical diagram illustrates the Cooling system - Engine coolant hoses within the Radiator group for the 5 Series G30 520dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Pipe for cylinder crankcase (Part #11538471773).
- Which models use the hardware listed in this Cooling system - Engine coolant hoses?
- The hardware and components featured in the Cooling system - Engine coolant hoses are specific to the 5 Series G30 520dX produced during 2020. These technical specifications ensure that parts like the Pipe for cylinder crankcase (11538471773) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system - Engine coolant hoses assembly?
- Each item in the Cooling system - Engine coolant hoses corresponds to the numbered list below the illustration. For the 5 Series G30 520dX, you can identify the Pipe for cylinder crankcase by locating its position on the schematic, which then links to the official BMW part number 11538471773 for the Radiator section.
