Cooling system-external Radiator for BMW 8 Series G16 Gran Coupé M850iX (2025)

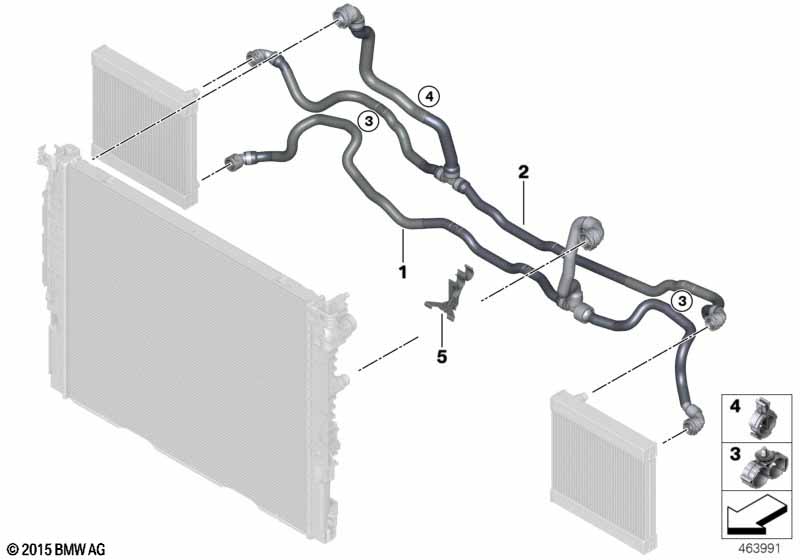

This Cooling system-external Radiator technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé M850iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Motorsport engineering package |
S33TA=No |
||||||||
| 01 | Hose, remote radiator- | 1 | 17129487613 | Shop at ECS Tuning | ||||||
| 02 | Hose, remote radiator- | 1 | 17128602863 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp, double | 2 | 32417849652 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | 1 | 17127599703 | Shop at ECS Tuning | ||||||
| 05 | Bracket, radiator | 2 | 17128632287 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G16 Gran Coupé M850iX Cooling system-external Radiator?
- This technical diagram illustrates the Cooling system-external Radiator within the Radiator group for the 8 Series G16 Gran Coupé M850iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Hose, remote radiator- (Part #17129487613).
- Which models use the hardware listed in this Cooling system-external Radiator?
- The hardware and components featured in the Cooling system-external Radiator are specific to the 8 Series G16 Gran Coupé M850iX produced during 2025. These technical specifications ensure that parts like the Hose, remote radiator- (17129487613) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-external Radiator assembly?
- Each item in the Cooling system-external Radiator corresponds to the numbered list below the illustration. For the 8 Series G16 Gran Coupé M850iX, you can identify the Hose, remote radiator- by locating its position on the schematic, which then links to the official BMW part number 17129487613 for the Radiator section.
