Cooling system coolant hoses for BMW 2 Series F44 Gran Coupé M235iX (2024)

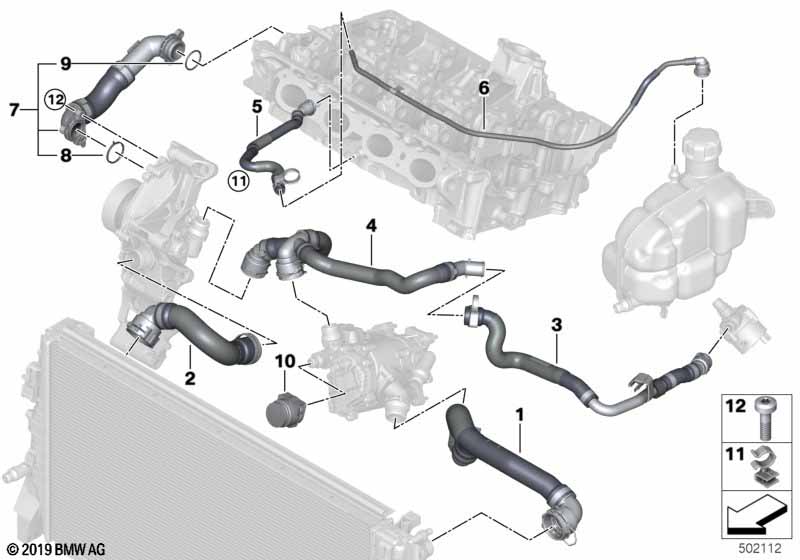

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé M235iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator-engine | 1 | 17128658480 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator top-thermostat | 1 | 17128658482 | Shop at ECS Tuning | ||||||
| 03 | Wire heat management module | 1 | 17128658488 | Shop at ECS Tuning | ||||||
| 04 | Wire heat management module | 1 | 11538632767 | Shop at ECS Tuning | ||||||
| 05 | Hose, expansion tank-cylinder head | 1 | 17128658484 | Shop at ECS Tuning | ||||||
| 06 | Pipe, expansion tank-cylinder head | 1 | 17128658483 | Shop at ECS Tuning | ||||||
| 07 | Line from coolant pump-cylinder head | 1 | 11538645546 | Shop at ECS Tuning | ||||||
| 08 | Gasket | 34,2X4,6X2,2 | 1 | 11539470624 | Shop at ECS Tuning | |||||
| 09 | O-ring | 28,7X2,5 | 1 | 11539454997 | Shop at ECS Tuning | |||||
| 10 | Blind plug | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 11 | Edge clip | D=16 | 1 | 17128659976 | Shop at ECS Tuning | |||||
| 12 | Countersunk screw | M6X20-8.8-ZNNIV | 5 | 07119907517 | Shop at ECS Tuning |
