Transmission oil cooler/oil cooler line for BMW 1 Series F40 128ti

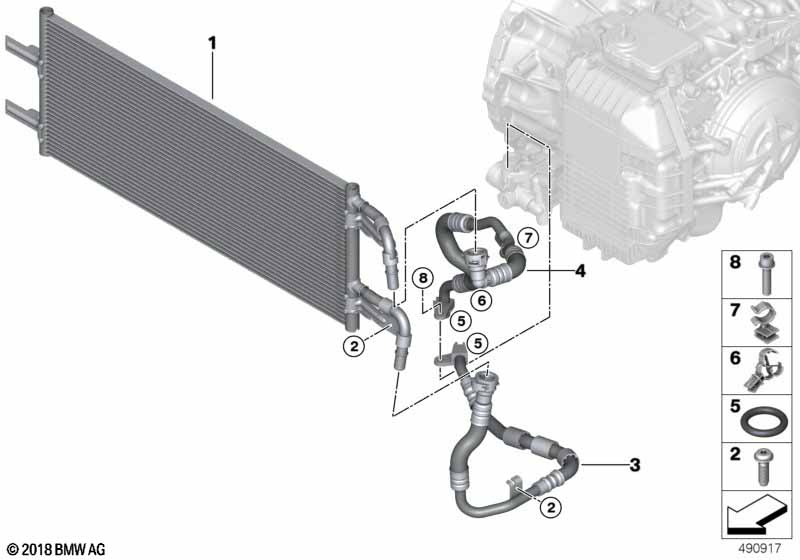

This Transmission oil cooler/oil cooler line technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission oil cooler | 1 | 17118645851 | Shop at ECS Tuning | ||||||
| 02 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 03 | Transmission oil cooler line, flow | 1 | 17228676524 | Shop at ECS Tuning | ||||||
| 04 | Transmission oil cooler line, return | 1 | 17228676525 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 11,8X2,4 | 2 | 17228607934 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | D=13 | 1 | 17128681205 | Shop at ECS Tuning | |||||
| 07 | Edge clip | D=16 | 1 | 17128659976 | Shop at ECS Tuning | |||||
| 08 | Fillister head with washer | M8X35-U1-8.8 | 1 | 07119906249 | $0.73 | Shop at ECS Tuning |
