Cooling system coolant hoses for BMW 8 Series G16 Gran Coupé 840dX (2024)

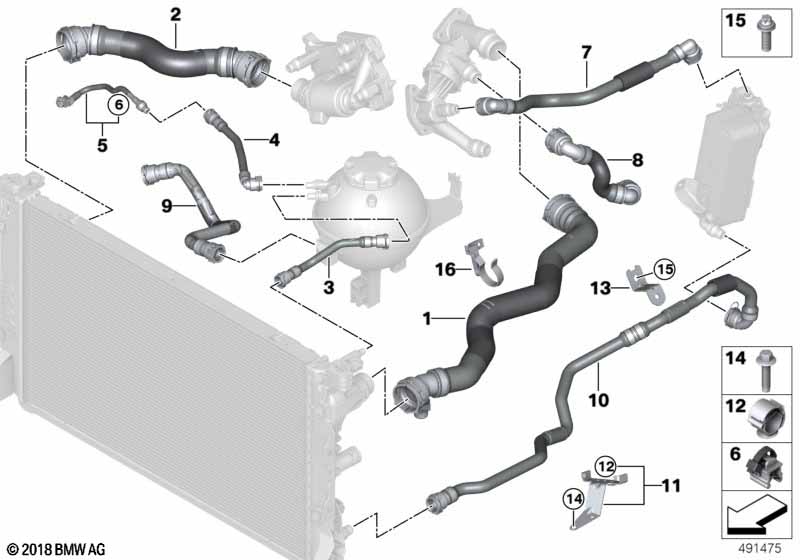

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator | 1 | 17128572905 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator | 1 | 17128572906 | Shop at ECS Tuning | ||||||
| 03 | Hose, radiator | 1 | 17128573221 | Shop at ECS Tuning | ||||||
| 04 | Hose, cylinder head-expansion tank | 1 | 17128572907 | Shop at ECS Tuning | ||||||
| 05 | Line, cylinder head-expansion tank | 1 | 11538571597 | Shop at ECS Tuning | ||||||
| 06 | Cable strap with bracket | L=200MM | 1 | 61137560191 | $1.40 | Shop at ECS Tuning | ||||
| 07 | Hose, transmission oil cooler- | 1 | 11538571595 | Shop at ECS Tuning | ||||||
| 08 | Hose, oil filter module-thermostat | 1 | 11538573382 | Shop at ECS Tuning | ||||||
| 09 | Hose, expansion tank- | 1 | 17128572908 | Shop at ECS Tuning | ||||||
| 10 | Hose, radiator | 1 | 17128573220 | Shop at ECS Tuning | ||||||
| 11 | Bracket, coolant hose | 1 | 17128619737 | Shop at ECS Tuning | ||||||
| 12 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 13 | Bracket, coolant hose | 1 | 17128632153 | Shop at ECS Tuning | ||||||
| 14 | Screw self-tapping | M6X25- 10.9 ZNS | 2 | 34306771214 | $1.08 | Shop at ECS Tuning | ||||
| 15 | Torx bolt | M8X25 8.8 ZNS3 | 1 | 07119908535 | Shop at ECS Tuning | |||||
| 16 | Clip for coolant hose | 1 | 17128584228 | Shop at ECS Tuning |
