Transmission oil cooler/oil cooler line for BMW 3 Series G20 Sedan 320i (2022)

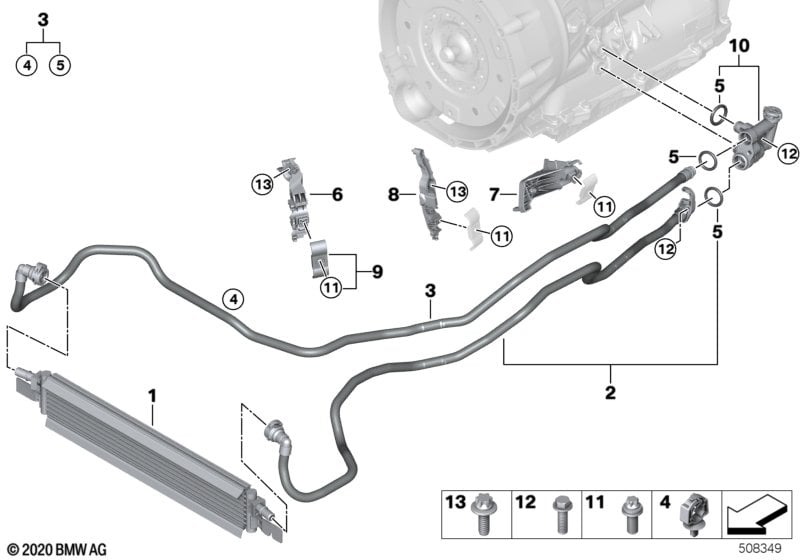

This Transmission oil cooler/oil cooler line technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission oil cooler | 1 | 17218679837 | Shop at ECS Tuning | ||||||
| 02 | Transmission oil cooler line, flow | 1 | 17228654905 | Shop at ECS Tuning | ||||||
| 03 | Transmission oil cooler line, return | 1 | 17228654894 | Shop at ECS Tuning | ||||||
| 04 | Clip | 1 | 61139322724 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 13,94X2,62 | 4 | 17227613656 | Shop at ECS Tuning | |||||
| 06 | Bracket, oil cooler line | 1 | 17227936448 | Shop at ECS Tuning | ||||||
| 08 | Bracket for coolant line | 1 | 17227936450 | Shop at ECS Tuning | ||||||
| 09 | Top shell for holder | 2 | 17228699987 | Shop at ECS Tuning | ||||||
| 10 | Thermostat | 1 | 17228678822 | Shop at ECS Tuning | ||||||
| 11 | Not currently available as single part | 2 | 84210300309 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X25 UD15 | 2 | 17228678827 | Shop at ECS Tuning | |||||
| 13 | ASA-Bolt | BM6X16-ZNNIV SI | 2 | 07119907573 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 320i Transmission oil cooler/oil cooler line?
- This technical diagram illustrates the Transmission oil cooler/oil cooler line within the Radiator group for the 3 Series G20 Sedan 320i produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Transmission oil cooler (Part #17218679837).
- Which models use the hardware listed in this Transmission oil cooler/oil cooler line?
- The hardware and components featured in the Transmission oil cooler/oil cooler line are specific to the 3 Series G20 Sedan 320i produced during 2022. These technical specifications ensure that parts like the Transmission oil cooler (17218679837) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Transmission oil cooler/oil cooler line assembly?
- Each item in the Transmission oil cooler/oil cooler line corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 320i, you can identify the Transmission oil cooler by locating its position on the schematic, which then links to the official BMW part number 17218679837 for the Radiator section.
