Coolant radiator mounting hardware for BMW 3 Series G20 Sedan 320dX (2019)

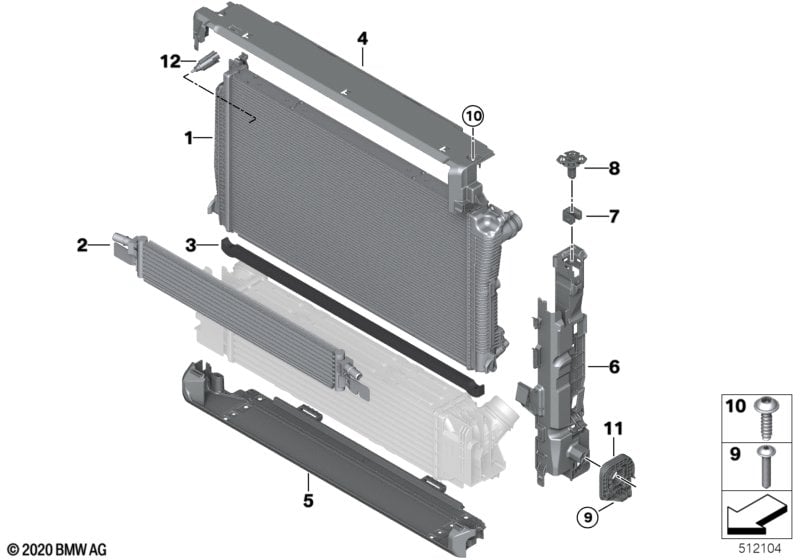

This Coolant radiator mounting hardware technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Radiator | 1 | 17118593276 | Shop at ECS Tuning | ||||||
| 02 | Transmission oil cooler | 1 | 17218679837 | Shop at ECS Tuning | ||||||
| Cooler for high-voltage battery coolant circuit |
||||||||||
| 03 | Foam seal | 1 | 17118694656 | Shop at ECS Tuning | ||||||
| 04 | Cover,top | 1 | 17118666835 | Shop at ECS Tuning | ||||||
| 05 | Covering Lower | 1 | 17118594540 | Shop at ECS Tuning | ||||||
| 06 | Covering right | 1 | 17118666839 | Shop at ECS Tuning | ||||||
| 06 | Covering left | 1 | 17118666840 | Shop at ECS Tuning | ||||||
| 07 | Cooling module bearing, upper | 2 | 17118666828 | Shop at ECS Tuning | ||||||
| 08 | Fastening elements | 2 | 17118482944 | Shop at ECS Tuning | ||||||
| 09 | Screw self-tapping | D=6X20MM | 6 | 07148598226 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | M6X30 | 2 | 17117596108 | Shop at ECS Tuning | |||||
| 11 | Module mount, left | 1 | 17119895621 | Shop at ECS Tuning | ||||||
| 11 | Module mount, right | 1 | 17119895622 | Shop at ECS Tuning | ||||||
| 12 | Temperature sensor, coolant | 1 | 07/2021 | 13628650714 | Shop at ECS Tuning | |||||
