Remote radiator for BMW 3 Series G20 Sedan LCI M340i (2023)

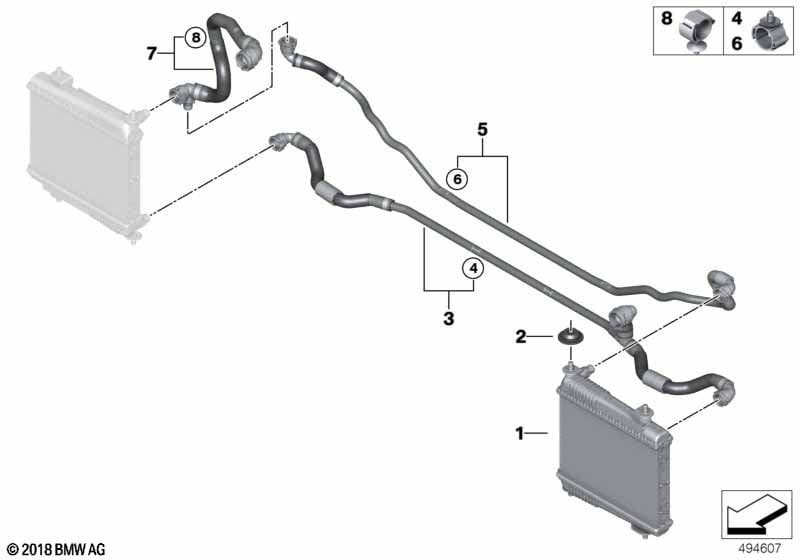

This Remote radiator technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Remote radiator | 2 | 17118672237 | Shop at ECS Tuning | ||||||
| 02 | Rubber element | 8 | 17118694657 | Shop at ECS Tuning | ||||||
| 03 | Line external radiator | 1 | 17128654820 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | D=14MM | 2 | 17128693287 | Shop at ECS Tuning | |||||
| 05 | Line external radiator | 1 | 17128654815 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp | D=14MM | 4 | 17128693287 | Shop at ECS Tuning | |||||
| 07 | Hose, remote, coolant radiator | 1 | 17125A024C1 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | D=23MM | 1 | 17127619358 | Shop at ECS Tuning |
