Cooling system coolant hoses for BMW 1 Series F40 116d

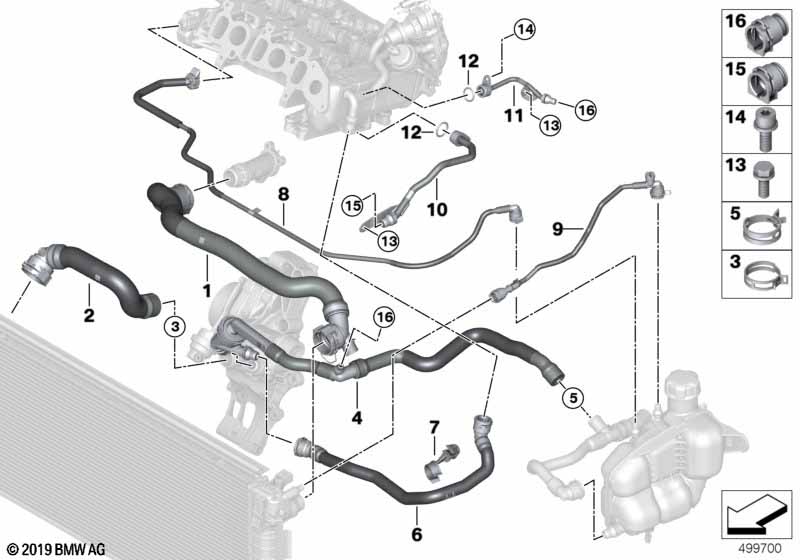

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU5 and Steptronic with twin-clutch gearbox |
S161A=Yes S2TFA=No |
||||||||
| 01 | Hose, radiator-engine | 1 | 17128580475 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator | 1 | 17128580476 | Shop at ECS Tuning | ||||||
| 03 | Clamp | D=40MM | 1 | 17122754490 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Hose for expansion tank | 1 | 17128580481 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | D=29MM | 1 | 64112755596 | Shop at ECS Tuning | |||||
| 06 | Hose for high-pressure EGR - thermostat | 1 | 11538580498 | Shop at ECS Tuning | ||||||
| 07 | Clip | 1 | 11538595055 | Shop at ECS Tuning | ||||||
| 08 | Hose for cylinder head | 1 | 17128580478 | Shop at ECS Tuning | ||||||
| 09 | Pipe, radiator-expansion tank | 1 | 17128580480 | Shop at ECS Tuning | ||||||
| 10 | Pipe for cylinder crankcase | 1 | 11538580490 | Shop at ECS Tuning | ||||||
| 11 | Pipe cylinder crankcase | 1 | 11538580496 | Shop at ECS Tuning | ||||||
| 12 | O-ring | 16X2,5 | 2 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 3 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Blind plug | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 16 | Cap | D=6 | 2 | 17128515062 | Shop at ECS Tuning | |||||
