Cooling system coolant hoses for BMW 2 Series F44 Gran Coupé 218d

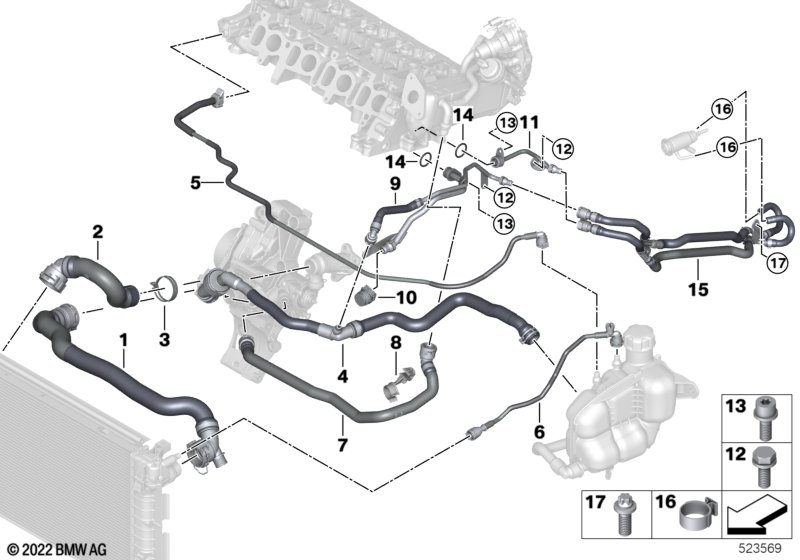

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 218d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU5 and Automatic transmission and Sport automatic transmission |
S161A=No S205A=No S2TBA=No |
||||||||
| 01 | Hose, radiator-engine | 1 | 17128584831 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator | 1 | 17128580477 | Shop at ECS Tuning | ||||||
| 03 | Clamp | D=40MM | 1 | 17122754490 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Hose for expansion tank | 1 | 17128580485 | Shop at ECS Tuning | ||||||
| 05 | Pipe, expansion tank-cylinder head | 1 | 17128580479 | Shop at ECS Tuning | ||||||
| 06 | Pipe, radiator-expansion tank | 1 | 17128580480 | Shop at ECS Tuning | ||||||
| 07 | Hose high pressure EGR coolant pump | 1 | 11538584837 | Shop at ECS Tuning | ||||||
| 08 | Clip | 1 | 11538595055 | Shop at ECS Tuning | ||||||
| 09 | Line for coolant pump | 1 | 11538584835 | Shop at ECS Tuning | ||||||
| 10 | Blind plug | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 11 | Pipe cylinder crankcase | 1 | 11538580496 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 1 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 14 | O-ring | 16X2,5 | 2 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 15 | Hose for SCR metering module | 1 | 17128580511 | Shop at ECS Tuning | ||||||
| 16 | Hose clamp | D=10,8-13,3 | 2 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose for SCR metering module | 1 | 17128580511 | Shop at ECS Tuning | ||||||
| 17 | Hex bolt | M6X16-U1-A2-70 | 2 | 11659908283 | Shop at ECS Tuning | |||||
