Electric water pump / mount for BMW 3 Series G21 Touring 330e (2022)

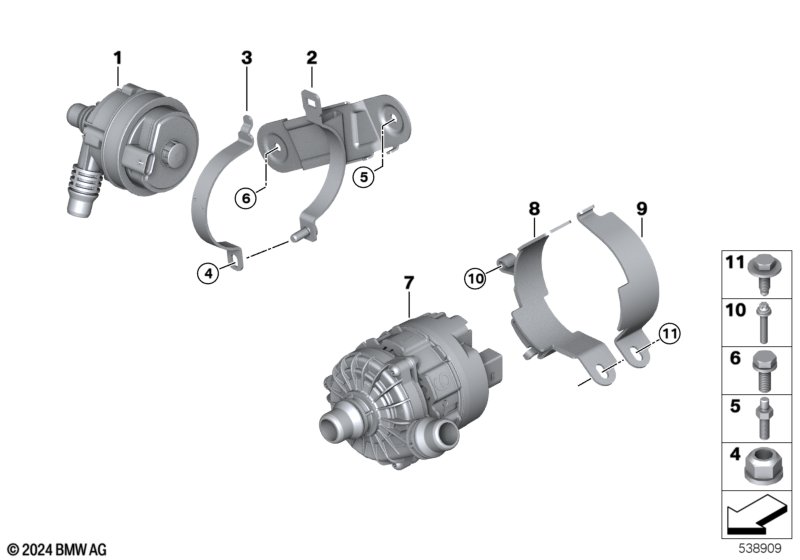

This Electric water pump / mount technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Auxiliary water pump | 1 | 11518651287 | Shop at ECS Tuning | ||||||
| 02 | Bracket for coolant pump, electric | 1 | 11517935177 | Shop at ECS Tuning | ||||||
| 03 | Support | 1 | 11517935179 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | AM6-8-ZNNIV SI | 1 | 07129905471 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Screw | M6 8.8 ZNNIV-SI | 1 | 11518652138 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Auxiliary water pump | 1 | 11515A30246 | Shop at ECS Tuning | ||||||
| 09 | Support | 1 | 11517935182 | Shop at ECS Tuning | ||||||
| 10 | Star-socket screw | M6X30 | 1 | 11519908732 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X16 ZNS3 | 1 | 07119905577 | Shop at ECS Tuning |
