Cooling system coolant hoses for BMW 1 Series F40 120d (2024)

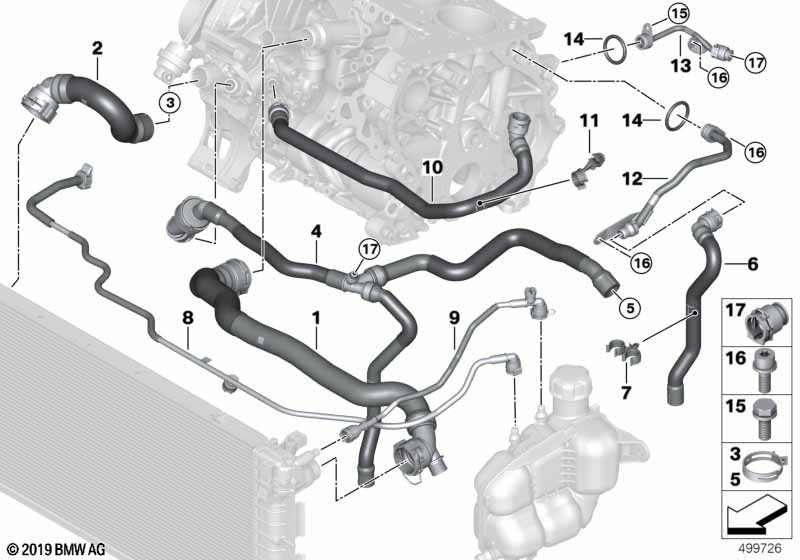

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
||||||||
| 01 | Hose, radiator-engine | 1 | 17128584831 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator | 1 | 17128580477 | Shop at ECS Tuning | ||||||
| 03 | Clamp | D=40MM | 1 | 17122754490 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Hose coolant pump | 1 | 17128580486 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | D=29MM | 1 | 64112755596 | Shop at ECS Tuning | |||||
| 06 | Wire hose connection | 1 | 11538580491 | Shop at ECS Tuning | ||||||
| 07 | Clip | D19/19 | 1 | 11538596826 | Shop at ECS Tuning | |||||
| 08 | Pipe, expansion tank-cylinder head | 1 | 17128580479 | Shop at ECS Tuning | ||||||
| 09 | Pipe, radiator-expansion tank | 1 | 17128580480 | Shop at ECS Tuning | ||||||
| 10 | Hose high pressure EGR coolant pump | 1 | 11538584837 | Shop at ECS Tuning | ||||||
| 11 | Clip | 1 | 11538595055 | Shop at ECS Tuning | ||||||
| 12 | Pipe for cylinder crankcase | 1 | 11538580490 | Shop at ECS Tuning | ||||||
| 13 | Pipe cylinder crankcase | 1 | 11538580496 | Shop at ECS Tuning | ||||||
| 14 | O-ring | 16X2,5 | 2 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 15 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 1 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Cap | D=6 | 2 | 17128515062 | Shop at ECS Tuning | |||||
