Coolant circuit high-volt.battery unit for BMW 3 Series G21 Touring LCI M340dX (2024)

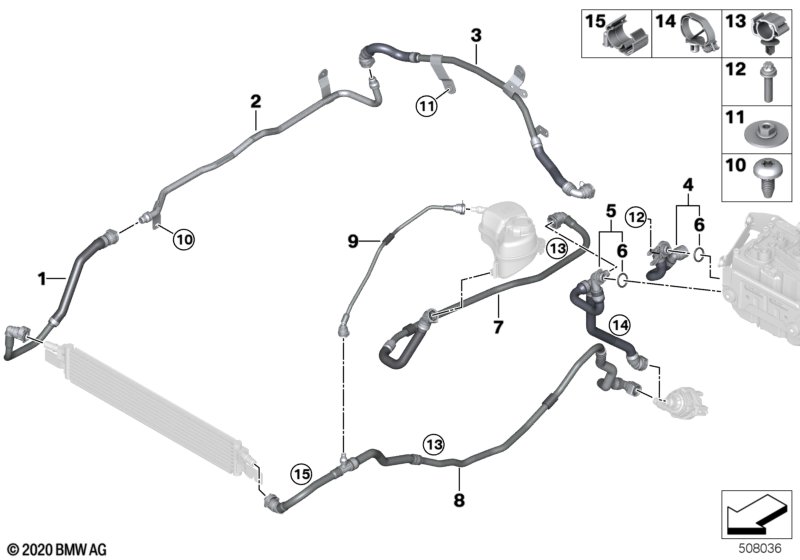

This Coolant circuit high-volt.battery unit technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator | 1 | 17128597300 | Shop at ECS Tuning | ||||||
| 02 | Line, fast forw.coolant radiator battery | 1 | 17128597294 | Shop at ECS Tuning | ||||||
| 03 | Wire, fast forward battery | 1 | 17128597295 | Shop at ECS Tuning | ||||||
| 04 | Line, battery charger | 1 | 17128597297 | Shop at ECS Tuning | ||||||
| 05 | Line, battery electric coolant pump | 1 | 17128597298 | Shop at ECS Tuning | ||||||
| 06 | O-ring | 16,7X2,6 | 2 | 17128642529 | Shop at ECS Tuning | |||||
| 07 | Line, return, electric coolant pump | 1 | 17128593780 | Shop at ECS Tuning | ||||||
| 08 | Line, return, electric coolant pump | 1 | 17128597301 | Shop at ECS Tuning | ||||||
| 09 | Vent line to high-voltage battery | 1 | 17128490100 | Shop at ECS Tuning | ||||||
| 10 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M6-8-ZNS3 | 2 | 13748595109 | Shop at ECS Tuning | |||||
| 12 | ASA screw | M6X20-8.8-ZNNIV | 1 | 07129907102 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | D=14MM | 3 | 17128693287 | Shop at ECS Tuning | |||||
| 14 | Dual clip | D=12/16 | 1 | 07149354599 | Shop at ECS Tuning | |||||
| 15 | Pipe clip | 1 | 17128476121 | Shop at ECS Tuning |
