Cooling system coolant hoses for BMW 4 Series G22 Coupé M440dX (2023)

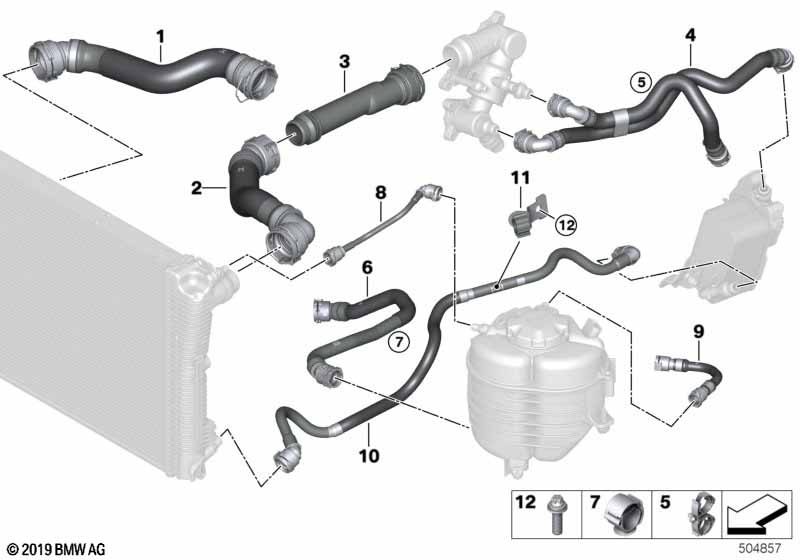

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé M440dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator | 1 | 17128598377 | Shop at ECS Tuning | ||||||
| 02 | Hose coolant pump | 1 | 17128598376 | Shop at ECS Tuning | ||||||
| 03 | Pipe for radiator | 1 | 11538596429 | Shop at ECS Tuning | ||||||
| 04 | Hose transmission oil cooler | 1 | 11538476120 | Shop at ECS Tuning | ||||||
| 05 | Dual clip | D=19-22 | 1 | 17128608773 | Shop at ECS Tuning | |||||
| 06 | Hose coolant pump | 1 | 17128598379 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 08 | Hose, radiator | 1 | 17128588863 | Shop at ECS Tuning | ||||||
| 09 | Hose, cylinder head-expansion tank | 1 | 17128598378 | Shop at ECS Tuning | ||||||
| 10 | Hose, radiator | 1 | 17128472022 | Shop at ECS Tuning | ||||||
| 11 | Hose clamp | 1 | 17128476447 | Shop at ECS Tuning | ||||||
| 12 | Torx bolt | M8X25 8.8 ZNS3 | 1 | 07119908535 | Shop at ECS Tuning |
