Cooling system - Engine coolant hoses for BMW 3 Series G20 Sedan M340dX (2022)

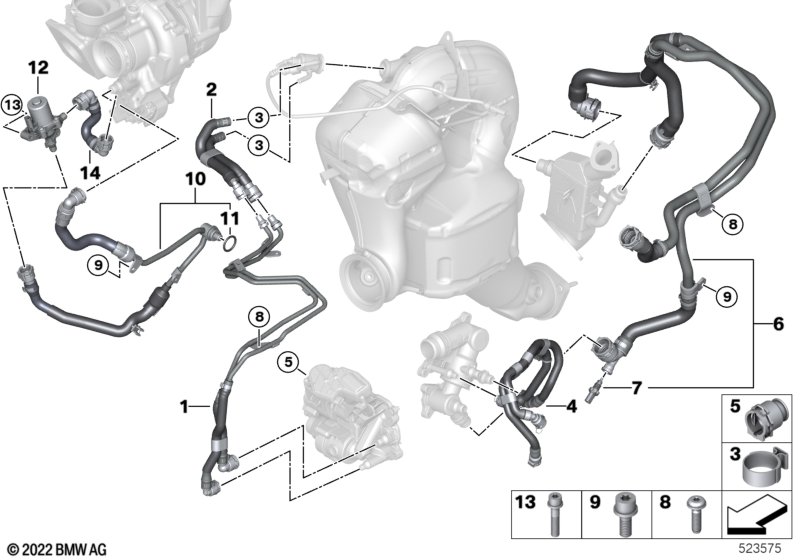

This Cooling system - Engine coolant hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Line, SCR metering module | 1 | 11538475191 | Shop at ECS Tuning | ||||||
| 02 | Hose for SCR metering module | 1 | 11538597759 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp | L12-14,5 | 2 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose for SCR metering module | 1 | 11538597759 | Shop at ECS Tuning | ||||||
| 04 | Pipe for cylinder crankcase | 1 | 11538596403 | Shop at ECS Tuning | ||||||
| 05 | Cap | D=6 | 1 | 17128515062 | Shop at ECS Tuning | |||||
| 06 | Line, high-PRESS.EGR - low PRESS.EGR | 1 | 11538596395 | Shop at ECS Tuning | ||||||
| 07 | Coolant temperature sensor | 1 | 13627823993 | Shop at ECS Tuning | ||||||
| 08 | Screw | 6X20 | 5 | 07129907489 | Shop at ECS Tuning | |||||
| 09 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 4 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Line from cylinder block-turbocharger | 1 | 11538596387 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 16X2,5 | 1 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 12 | Shut-off valve | 1 | 11538473160 | Shop at ECS Tuning | ||||||
| 13 | Hexagon bolt with inside Torx | M6X30-U1-8.8 | 1 | 07129907097 | Shop at ECS Tuning | |||||
| 14 | Line, exhaust turbocharger shutoff valve | 1 | 11538475192 | Shop at ECS Tuning | ||||||
