Electric coolant pump for BMW 3 Series G21 Touring 330d (2022)

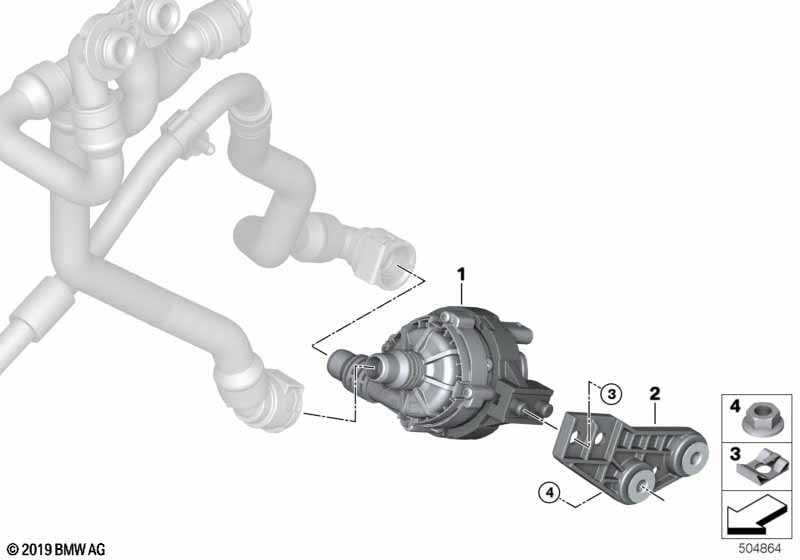

This Electric coolant pump technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Auxiliary water pump | 1 | 17618474820 | Shop at ECS Tuning | ||||||
| 02 | Bracket for electric water pump | 1 | 17618474821 | Shop at ECS Tuning | ||||||
| 03 | Circlip | B8 | 2 | 07129904492 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 330d Electric coolant pump?
- This technical diagram illustrates the Electric coolant pump within the Radiator group for the 3 Series G21 Touring 330d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Auxiliary water pump (Part #17618474820).
- Which models use the hardware listed in this Electric coolant pump?
- The hardware and components featured in the Electric coolant pump are specific to the 3 Series G21 Touring 330d produced during 2022. These technical specifications ensure that parts like the Auxiliary water pump (17618474820) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electric coolant pump assembly?
- Each item in the Electric coolant pump corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 330d, you can identify the Auxiliary water pump by locating its position on the schematic, which then links to the official BMW part number 17618474820 for the Radiator section.
