Cooling system coolant hoses for BMW 5 Series G30 LCI 530i (2023)

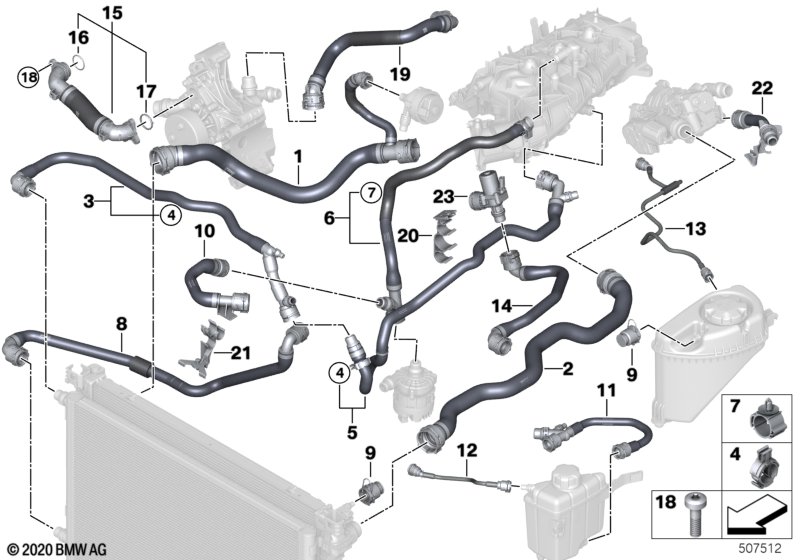

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Energy recovery system |
S1CEA=Yes |
||||||||
| 01 | Hose radiator-water pump | 1 | 17129895915 | Shop at ECS Tuning | ||||||
| 02 | Coolant return line | 1 | 17129485203 | Shop at ECS Tuning | ||||||
| 03 | Line from radiator | 1 | 17127934586 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | 3 | 17123417852 | Shop at ECS Tuning | ||||||
| 05 | Coolant feed line | 1 | 17129485209 | Shop at ECS Tuning | ||||||
| 06 | Coolant return line | 1 | 17129485210 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp | D=23MM | 1 | 17127619358 | Shop at ECS Tuning | |||||
| 08 | Hose, radiator | 1 | 17129485208 | Shop at ECS Tuning | ||||||
| 09 | Cap | D=6 | 2 | 17128515062 | Shop at ECS Tuning | |||||
| 10 | Hose for expansion tank | 1 | 17129485211 | Shop at ECS Tuning | ||||||
| 11 | Hose for expansion tank | 1 | 17129485207 | Shop at ECS Tuning | ||||||
| 12 | Pipe, radiator-expansion tank | 1 | 17129485206 | Shop at ECS Tuning | ||||||
| 13 | Hose, cylinder head-expansion tank | 1 | 17129485204 | Shop at ECS Tuning | ||||||
| 14 | Hose coolant pump | 1 | 17129468650 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 14 | Hose coolant pump | 1 | 17129485205 | Shop at ECS Tuning | ||||||
| 15 | Line from coolant pump-cylinder head | 1 | 11538650984 | Shop at ECS Tuning | ||||||
| 16 | O-ring | 28,7X2,5 | 1 | 11538674931 | Shop at ECS Tuning | |||||
| 17 | Gasket | 29,8X4,6X2,2 | 1 | 11538678045 | Shop at ECS Tuning | |||||
| 18 | Countersunk screw | M6X20-8.8-ZNNIV | 5 | 07119907517 | Shop at ECS Tuning | |||||
| 19 | Hose, thermostat-coolant pump | 1 | 11538650981 | Shop at ECS Tuning | ||||||
| 20 | Bracket, coolant hose | 1 | 17128681505 | Shop at ECS Tuning | ||||||
| 21 | Bracket, radiator | 1 | 17128670903 | Shop at ECS Tuning | ||||||
| 22 | Coolant pipe, supply line | 1 | 03/2023 | 11537952798 | Shop at ECS Tuning | |||||
| 22 | Coolant feed line | 1 | 11538833781 | Shop at ECS Tuning | ||||||
| 23 | Switch valve | 1 | 11518689694 | Shop at ECS Tuning | ||||||
