Coolant circuit, high-voltage system for BMW 5 Series G30 LCI 530i (2023)

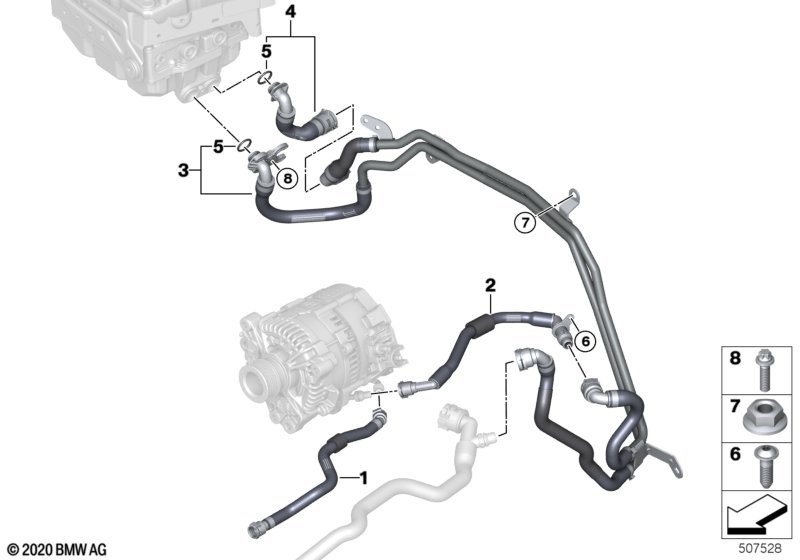

This Coolant circuit, high-voltage system technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Energy recovery system |
S1CEA=Yes |
||||||||
| 01 | Line, control unit | 1 | 17129485215 | Shop at ECS Tuning | ||||||
| 02 | Line, forward flow, battery control unit | 1 | 17129485214 | Shop at ECS Tuning | ||||||
| 03 | Rohr Startergenerator - Batterie | 1 | 17129485212 | Shop at ECS Tuning | ||||||
| 04 | Line, fast forward battery charger | 1 | 17129485202 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 16,7X2,6 | 2 | 17128642529 | Shop at ECS Tuning | |||||
| 06 | Torx-bolt for plastic material | TS5X20 | 1 | 07119907480 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 08 | ASA screw | M6X20-8.8-ZNNIV | 1 | 07129907102 | Shop at ECS Tuning | |||||
