Cooling system coolant hoses for BMW 4 Series G82 M4 Coupé M4 (2024)

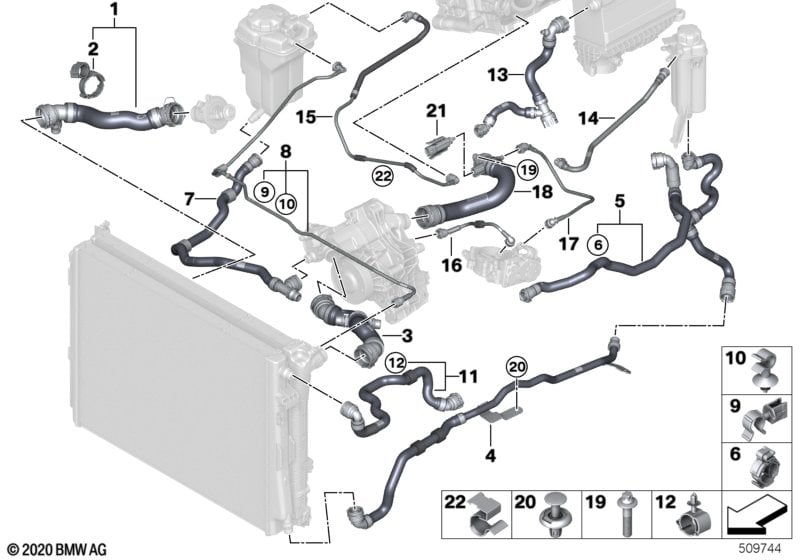

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose radiator thermostat | 1 | 17128096427 | Shop at ECS Tuning | ||||||
| 02 | Hose bracket, rotating | 1 | 07146844852 | Shop at ECS Tuning | ||||||
| 03 | Hose water pump | 1 | 17128096423 | Shop at ECS Tuning | ||||||
| 04 | Line from radiator | 1 | 17128096449 | Shop at ECS Tuning | ||||||
| 05 | Hose, indirect charge air cooler | 1 | 17128096448 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp | 1 | 17123424326 | Shop at ECS Tuning | ||||||
| 07 | Hose for expansion tank | 1 | 17128096444 | Shop at ECS Tuning | ||||||
| 08 | Pipe, radiator-expansion tank | 1 | 17128096445 | Shop at ECS Tuning | ||||||
| 09 | Pipe support | D12,5 | 2 | 17117856726 | Shop at ECS Tuning | |||||
| 10 | Bracket for coolant line | 2 | 11538571359 | Shop at ECS Tuning | ||||||
| 11 | Hose radiator-water pump | 1 | 17128096446 | Shop at ECS Tuning | ||||||
| 12 | Hose clamp | 1 | 64216827207 | Shop at ECS Tuning | ||||||
| 13 | Hose electric coolant pump | 1 | 17128096447 | Shop at ECS Tuning | ||||||
| 14 | Venting line, equalization tank | 1 | 17128096450 | Shop at ECS Tuning | ||||||
| 15 | Line, cylinder head-expansion tank | 1 | 17128053470 | Shop at ECS Tuning | ||||||
| 16 | Coolant hose | 1 | 04/2025 | 11538054849 | Shop at ECS Tuning | |||||
| 16 | Coolant hose | 1 | 11538872735 | Shop at ECS Tuning | ||||||
| 17 | Coolant hose | 1 | 11538054850 | Shop at ECS Tuning | ||||||
| 18 | Coolant hose | 1 | 11538054852 | Shop at ECS Tuning | ||||||
| 19 | Star-socket screw | BM6X25-U1-8.8 | 2 | 07119907490 | Shop at ECS Tuning | |||||
| 20 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 21 | Temperature sensor, coolant | 1 | 13628650714 | Shop at ECS Tuning | ||||||
| 22 | Clip | D=8-9MM | 1 | 07147575152 | Shop at ECS Tuning |
