Engine oil cooler/oil cooler line for BMW 3 Series G80 M3 M3 (2024)

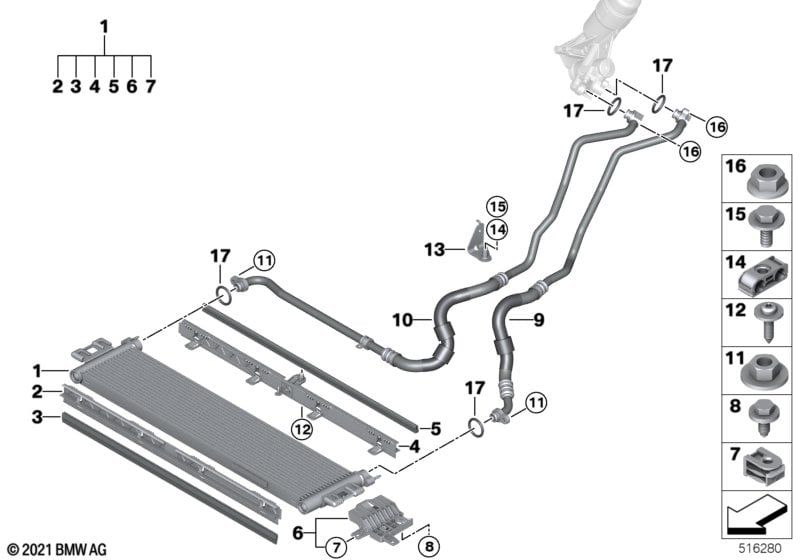

This Engine oil cooler/oil cooler line technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine oil cooler | 1 | 17215A4DF50 | Shop at ECS Tuning | ||||||
| 02 | Cover strip, engine oil cooler, front | 1 | 17219501842 | Shop at ECS Tuning | ||||||
| 03 | Air dam, engine oil cooler | 1 | 17219501845 | Shop at ECS Tuning | ||||||
| 04 | Cover strip, engine oil cooler, rear | 1 | 17218095296 | Shop at ECS Tuning | ||||||
| 05 | Profile seal, engine oil cooler | 1 | 17219501844 | Shop at ECS Tuning | ||||||
| 06 | Repair kit, bracket, engine oil cooler | 1 | 17219501958 | Shop at ECS Tuning | ||||||
| 07 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 09 | Feed line, engine oil cooler | 1 | 12/2021 | 17228848388 | Shop at ECS Tuning | |||||
| 10 | Return line, engine oil cooler | 1 | 12/2021 | 17228848389 | Shop at ECS Tuning | |||||
| 11 | Hex nut | BM6-8-ZNNIV SI | 2 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Screw | V-TS5X20 ZNS3 | 1 | 51119908446 | Shop at ECS Tuning | |||||
| 13 | Bracket for engine oil cooler line | 1 | 17228053474 | Shop at ECS Tuning | ||||||
| 14 | Clip | 1 | 17227594154 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 16 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 17 | O-ring | 17,00X2,65 | 4 | 17228680549 | Shop at ECS Tuning |
