Coolant circuit high-volt.battery unit for BMW 5 Series G30 LCI 518d (2023)

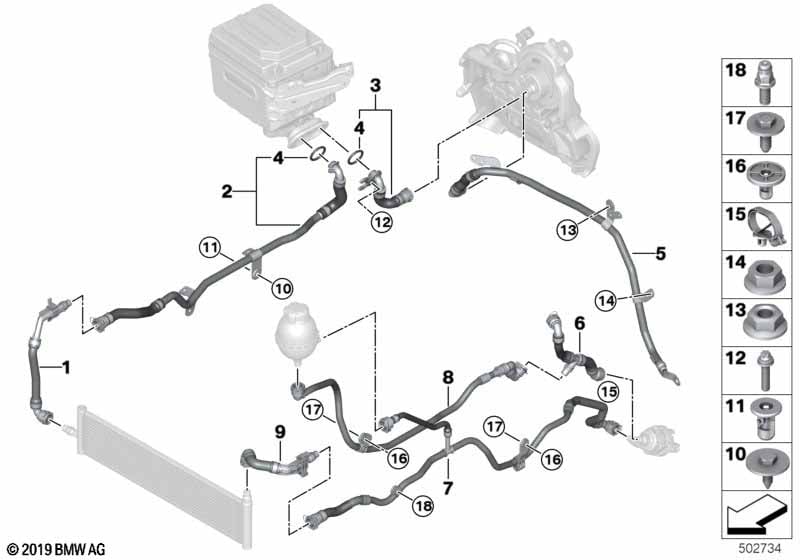

This Coolant circuit high-volt.battery unit technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 518d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced from 07/01/2021 |
|||||||||
| 01 | Return line, front | 1 | 17128472251 | Shop at ECS Tuning | ||||||
| 02 | Line, fast forw.coolant radiator battery | 1 | 17128596342 | Shop at ECS Tuning | ||||||
| 03 | Line, fast forward battery charger | 1 | 17128596344 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 16,7X2,6 | 2 | 17128642529 | Shop at ECS Tuning | |||||
| 05 | Line charger | 1 | 17128596345 | Shop at ECS Tuning | ||||||
| 06 | Line charger | 1 | 17128597660 | Shop at ECS Tuning | ||||||
| 07 | Line, return, electric coolant pump | 1 | 17128475992 | Shop at ECS Tuning | ||||||
| 08 | Line, return, electric coolant pump | 1 | 17128596346 | Shop at ECS Tuning | ||||||
| 09 | Feed line, front | 1 | 17128472250 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt | TS5X17 SW8 D=22 | 2 | 07149126886 | Shop at ECS Tuning | |||||
| 11 | Expanding nut | L=18.4, DMAX=18 | 2 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 12 | ASA screw | M6X20-8.8-ZNNIV | 2 | 07129907102 | Shop at ECS Tuning | |||||
| 13 | Hex nut | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 14 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 15 | Dual clip | D=12/16 | 1 | 07149354599 | Shop at ECS Tuning | |||||
| 16 | Expanding nut | L= 19.9MM | 2 | 07147306224 | Shop at ECS Tuning | |||||
| 17 | Hexagon screw for plastic | 2 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 18 | Blind rivet threaded stud | 1 | 07146846903 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 518d Coolant circuit high-volt.battery unit?
- This technical diagram illustrates the Coolant circuit high-volt.battery unit within the Radiator group for the 5 Series G30 LCI 518d produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Return line, front (Part #17128472251).
- Which models use the hardware listed in this Coolant circuit high-volt.battery unit?
- The hardware and components featured in the Coolant circuit high-volt.battery unit are specific to the 5 Series G30 LCI 518d produced during 2023. These technical specifications ensure that parts like the Return line, front (17128472251) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant circuit high-volt.battery unit assembly?
- Each item in the Coolant circuit high-volt.battery unit corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 518d, you can identify the Return line, front by locating its position on the schematic, which then links to the official BMW part number 17128472251 for the Radiator section.
