Cooling system - Engine coolant hoses for BMW 1 Series F70 120d (2025)

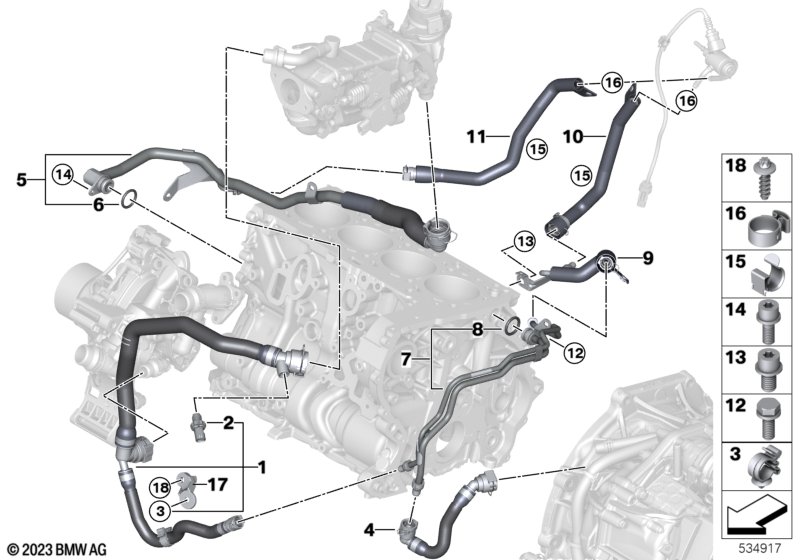

This Cooling system - Engine coolant hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant hose feed line EGR | 1 | 11537926146 | Shop at ECS Tuning | ||||||
| 02 | Coolant temperature sensor | 1 | 13627823993 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp | 1 | 11612283929 | $1.77 | Shop at ECS Tuning | |||||
| 04 | Coolant hose | 1 | 11537926148 | Shop at ECS Tuning | ||||||
| 05 | Coolant return line EGR | 1 | 11537828900 | Shop at ECS Tuning | ||||||
| 06 | O-ring | 19,2X3 | 1 | 11537100746 | Shop at ECS Tuning | |||||
| 07 | Coolant line | 1 | 11537926147 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 16X3 | 1 | 11537100747 | Shop at ECS Tuning | |||||
| 09 | Coolant line | 1 | 11538471941 | Shop at ECS Tuning | ||||||
| 10 | Coolant hose SCR metering module | 1 | 11537926145 | Shop at ECS Tuning | ||||||
| 11 | Coolant hose SCR metering module | 1 | 11537822426 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 13 | ISA screw | M10X20-8.8-ZNS3 | 1 | 07129904489 | Shop at ECS Tuning | |||||
| 14 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 3 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Clip | 15-19 | 2 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | 12,8-15,3 | 2 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 17 | Holder, coolant line | 1 | 11538860766 | NoS | Shop at ECS Tuning | |||||
| 18 | ASA screw, self-threading | M6X18 | 1 | 11367609963 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 120d Cooling system - Engine coolant hoses?
- This technical diagram illustrates the Cooling system - Engine coolant hoses within the Radiator group for the 1 Series F70 120d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Coolant hose feed line EGR (Part #11537926146).
- Which models use the hardware listed in this Cooling system - Engine coolant hoses?
- The hardware and components featured in the Cooling system - Engine coolant hoses are specific to the 1 Series F70 120d produced during 2025. These technical specifications ensure that parts like the Coolant hose feed line EGR (11537926146) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system - Engine coolant hoses assembly?
- Each item in the Cooling system - Engine coolant hoses corresponds to the numbered list below the illustration. For the 1 Series F70 120d, you can identify the Coolant hose feed line EGR by locating its position on the schematic, which then links to the official BMW part number 11537926146 for the Radiator section.
