Cooling System Water Hoses for BMW 6 Series E63 650i (2007)

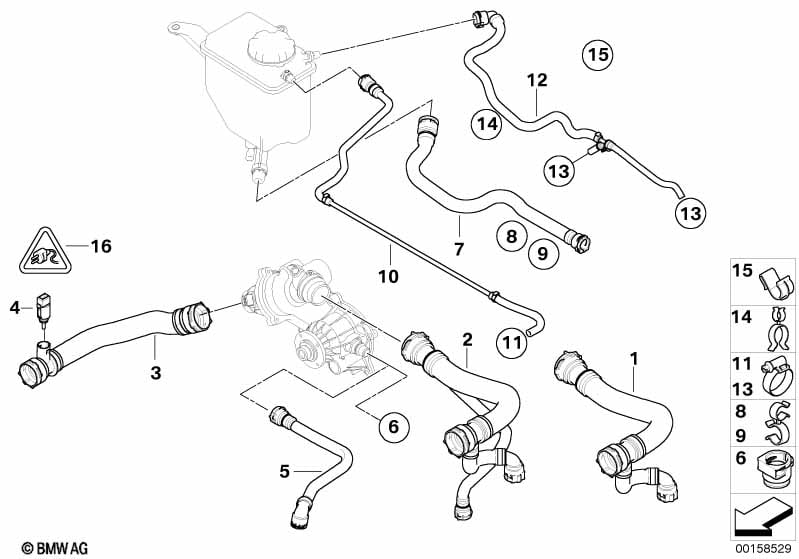

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supply hose | 1 | 17127540665 | $87.15 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 02 | Supply hose | 1 | 17127534918 | $87.15 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | D=18/20 | 1 | 17221341603 | $1.87 | Shop at ECS Tuning | ||||
| 03 | Return hose | 1 | 17127540666 | $43.58 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | D=18/20 | 1 | 17221341603 | $1.87 | Shop at ECS Tuning | ||||
| 04 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 05 | Return hose | 1 | 17127540667 | $33.77 | +core | Shop at ECS Tuning | ||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 06 | Blind plug | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 07 | Return hose | 1 | 17127545653 | $44.87 | +core | Shop at ECS Tuning | ||||
| 08 | Hose clamp | 40/24 | 1 | 17127510098 | $2.37 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 10 | Vent pipe | 1 | 17127534917 | $46.28 | +core | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Vent pipe | 1 | 07/2004 | 17127542540 | $47.63 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | 13/16 | 1 | 11641740398 | $1.77 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | 1 | 17111719199 | $1.18 | Shop at ECS Tuning | |||||
| 16 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
