Power steering cooler for BMW 6 Series E64 M6 (2010)

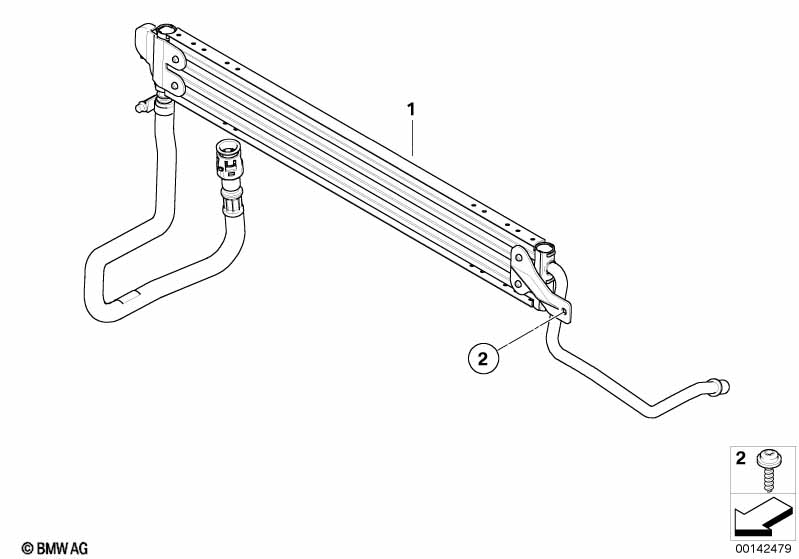

This Power steering cooler technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power steering cooler | 1 | 17112282652 | $303.58 | Shop at ECS Tuning | |||||
| 02 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 M6 Power steering cooler?
- This technical diagram illustrates the Power steering cooler within the Radiator group for the 6 Series E64 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Power steering cooler (Part #17112282652).
- Which models use the hardware listed in this Power steering cooler?
- The hardware and components featured in the Power steering cooler are specific to the 6 Series E64 M6 produced during 2010. These technical specifications ensure that parts like the Power steering cooler (17112282652) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power steering cooler assembly?
- Each item in the Power steering cooler corresponds to the numbered list below the illustration. For the 6 Series E64 M6, you can identify the Power steering cooler by locating its position on the schematic, which then links to the official BMW part number 17112282652 for the Radiator section.
