Fan housing, mounting parts for BMW 6 Series E63 M6 (2010)

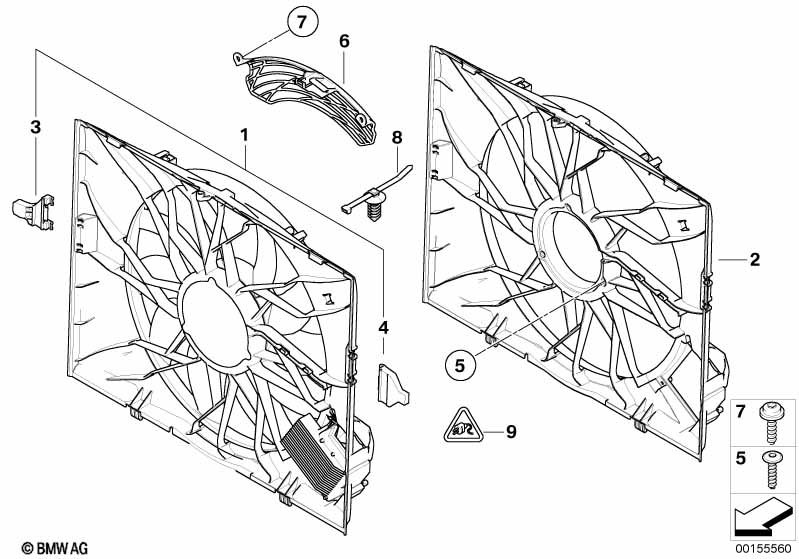

This Fan housing, mounting parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan housing with fan | 1 | 17422282936 | $781.82 | Shop at ECS Tuning | |||||
| 02 | Fan shroud | 1 | 17422282943 | $182.85 | Shop at ECS Tuning | |||||
| 03 | Bracket, fan housing | 1 | 17112283109 | $17.25 | Shop at ECS Tuning | |||||
| 04 | Bracket, fan housing | 1 | 17117507979 | $5.82 | Shop at ECS Tuning | |||||
| 05 | Screw self-tapping | 5X1,23X10 | 7 | 17427514831 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Protecting grille | 1 | 17112283102 | $8.10 | Shop at ECS Tuning | |||||
| 07 | Screw self-tapping | D6X20 ZNS3 | 2 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 08 | Cable strap with bracket | Ø=7,9 / L=200 | 2 | 61136914992 | $0.50 | Shop at ECS Tuning | ||||
| 09 | Socket housing | 4 POL. | 1 | 61136900536 | $4.20 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Plug connection female LSK8 | 4-6MM² ELA | 1 | 12521436650 | $2.58 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Grommet | 4MM² | 1 | 12527505634 | $3.47 | Shop at ECS Tuning | ||||
