Fan shroud/fan for BMW 6 Series E64 LCI 650i (2010)

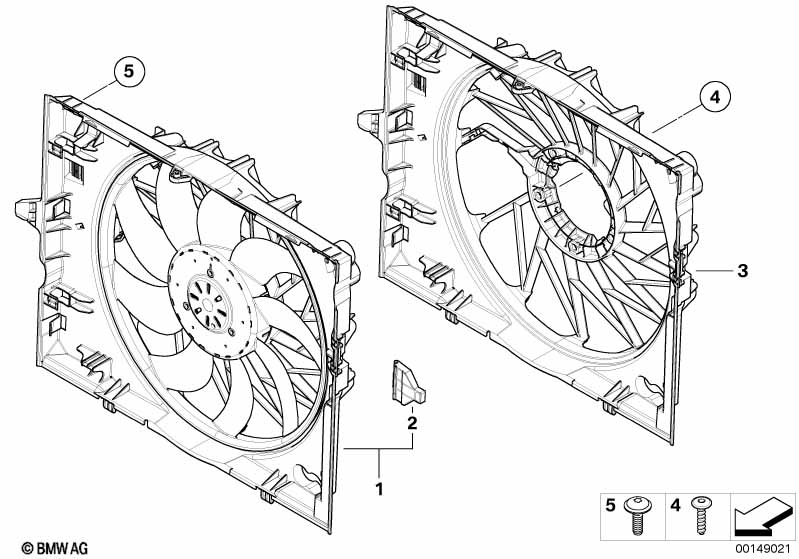

This Fan shroud/fan technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan housing with fan | 600W | 1 | 17427534911 | $621.50 | Shop at ECS Tuning | ||||
| 02 | Bracket, fan housing | 1 | 17117507979 | $5.82 | Shop at ECS Tuning | |||||
| 03 | Fan shroud | 1 | 17427534912 | $241.40 | Shop at ECS Tuning | |||||
| 04 | Screw self-tapping | 5X1,23X10 | 5 | 17427514831 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning |
