Fan housing, mounting parts for BMW 7 Series G70 M760eX (2024)

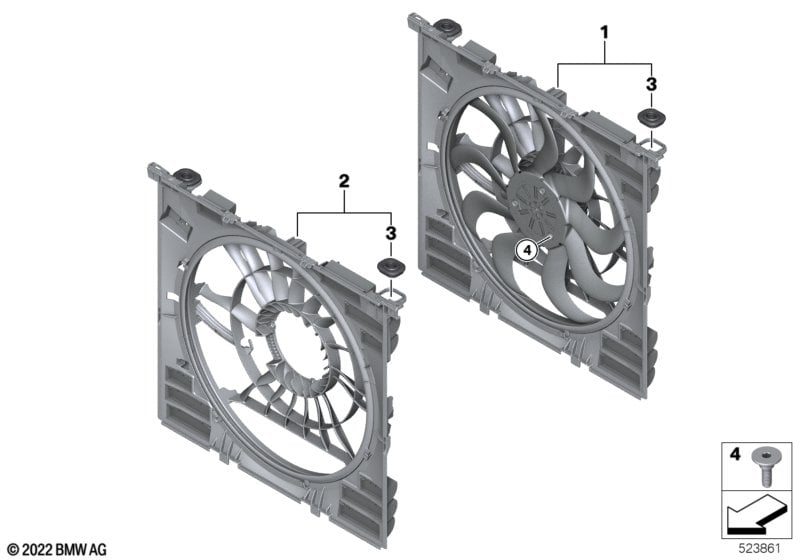

This Fan housing, mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan housing with fan | 1000W | 1 | 17425A18809 | Shop at ECS Tuning | |||||
| 02 | Fan shroud | 850W / 1000W | 1 | 17425A198A7 | Shop at ECS Tuning | |||||
| 03 | Rubber mount | 2 | 17115A18881 | Shop at ECS Tuning | ||||||
| 04 | Fillister-head screw | M6X20 | 3 | 17427611612 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX Fan housing, mounting parts?
- This technical diagram illustrates the Fan housing, mounting parts within the Radiator group for the 7 Series G70 M760eX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Fan housing with fan (Part #17425A18809).
- Which models use the hardware listed in this Fan housing, mounting parts?
- The hardware and components featured in the Fan housing, mounting parts are specific to the 7 Series G70 M760eX produced during 2024. These technical specifications ensure that parts like the Fan housing with fan (17425A18809) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fan housing, mounting parts assembly?
- Each item in the Fan housing, mounting parts corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the Fan housing with fan by locating its position on the schematic, which then links to the official BMW part number 17425A18809 for the Radiator section.
