Transmission oil cooler/oil cooler line for BMW 5 Series G60 Sedan 540dX (2025)

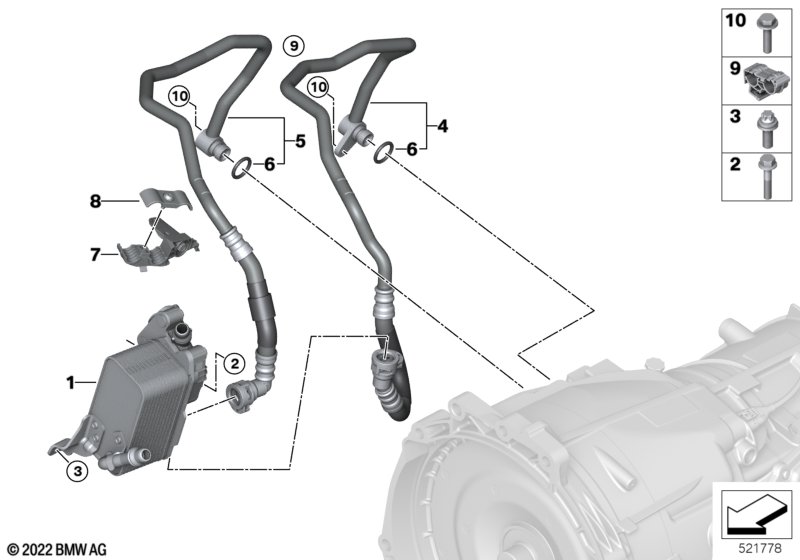

This Transmission oil cooler/oil cooler line technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission oil cooler | 1 | 17218580419 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | M6X30 | 2 | 07119904400 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | BM6X16-ZNNIV SI | 1 | 07119907573 | Shop at ECS Tuning | |||||
| 04 | Transmission oil cooler feed line | 1 | 17227827054 | Shop at ECS Tuning | ||||||
| 05 | Transmission oil cooler line return | 1 | 17227827056 | Shop at ECS Tuning | ||||||
| 06 | O-ring | 13,94X2,62 | 2 | 07148851323 | Shop at ECS Tuning | |||||
| 07 | Bracket transmission oil cooler line | 1 | 17228479101 | Shop at ECS Tuning | ||||||
| 08 | Top shell for holder | 1 | 17228699987 | Shop at ECS Tuning | ||||||
| 09 | Edge clip | 1 | 17227926315 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt | M6X25 UD15 | 1 | 17228678827 | Shop at ECS Tuning |
