Cooling system - Engine coolant hoses for BMW 5 Series G61 Touring 540dX (2025)

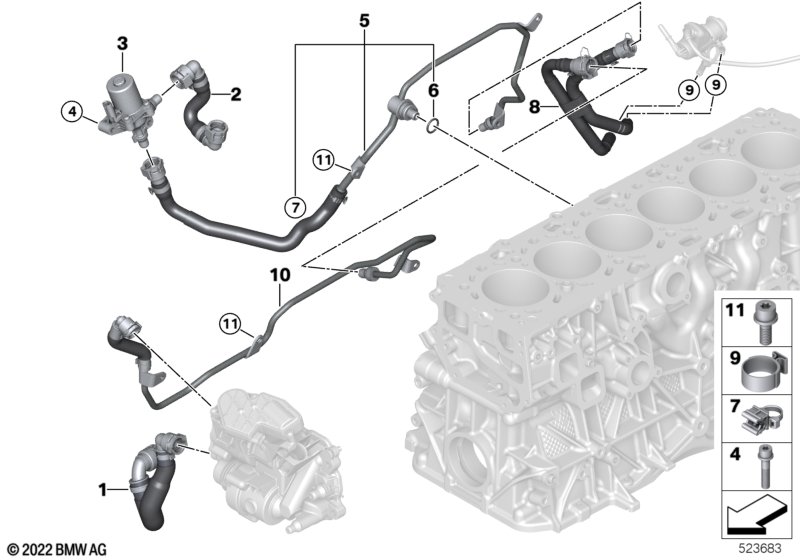

This Cooling system - Engine coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Line, turbocharger-coolant pump | 1 | 11538596394 | Shop at ECS Tuning | ||||||
| 02 | Line, exhaust turbocharger shutoff valve | 1 | 11538475192 | Shop at ECS Tuning | ||||||
| 03 | Shut-off valve | 1 | 11538473160 | Shop at ECS Tuning | ||||||
| 04 | Hexagon bolt with inside Torx | M6X30-U1-8.8 | 2 | 07129907097 | Shop at ECS Tuning | |||||
| 05 | Line, engine block SCR module | 1 | 11538470048 | Shop at ECS Tuning | ||||||
| 06 | O-ring | 16X2,5 | 1 | 11537808102 | $2.19 | Shop at ECS Tuning | ||||
| 07 | Cable strap with bracket | 1 | 61137809768 | Shop at ECS Tuning | ||||||
| 08 | Line SCR metering module | 1 | 17129886773 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | L12-14,5 | 2 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Line SCR metering module | 2 | 17129886773 | Shop at ECS Tuning | ||||||
| 10 | Line, SCR meter module - thermostat | 1 | 11538596391 | Shop at ECS Tuning | ||||||
| 11 | Torx-bolt with washer | M6X16-8.8-ZNNIV | 5 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
