Cooling system coolant hoses for BMW 5 Series G60 Sedan 520d (2025)

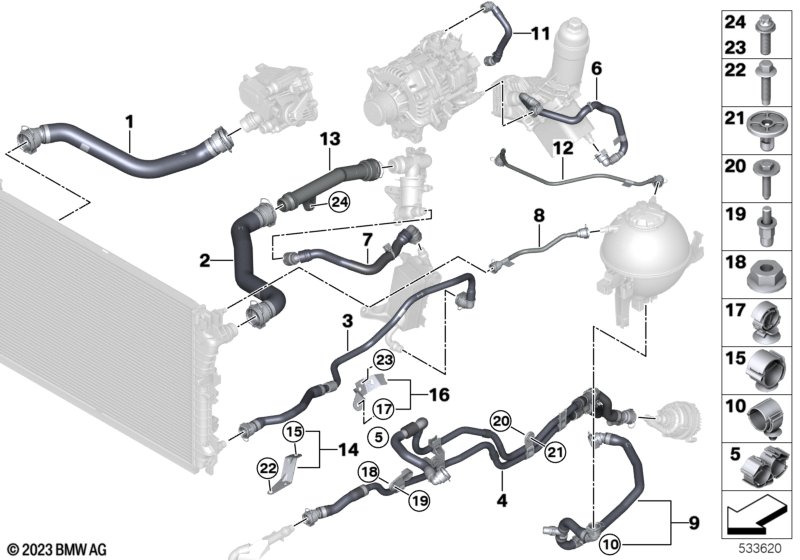

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator | 1 | 17129886554 | Shop at ECS Tuning | ||||||
| 02 | Hose coolant radiator feed | 1 | 17129886553 | Shop at ECS Tuning | ||||||
| 03 | Transmission oil cooler line | 1 | 17119886556 | Shop at ECS Tuning | ||||||
| 04 | Line low temperature coolant radiator | 1 | 17129885518 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp, double | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 06 | Line oil filter module | 1 | 11538490646 | Shop at ECS Tuning | ||||||
| 07 | Coolant line transmission oil cooler | 1 | 11538474384 | Shop at ECS Tuning | ||||||
| 08 | Pipe coolant radiator-expansion tank | 1 | 17129886382 | Shop at ECS Tuning | ||||||
| 09 | Coolant hose expansion tank | 1 | 17129886555 | NoS | Shop at ECS Tuning | |||||
| 10 | Clip | D=20-22 | 1 | 17128685197 | Shop at ECS Tuning | |||||
| 11 | Line, control unit | 1 | 11538474074 | Shop at ECS Tuning | ||||||
| 12 | Pipe cylinder head - expansion tank | 1 | 17129886557 | Shop at ECS Tuning | ||||||
| 13 | Coolant feed pipe | 1 | 11538474374 | Shop at ECS Tuning | ||||||
| 14 | Bracket, coolant hose | 1 | 17128619737 | Shop at ECS Tuning | ||||||
| 15 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 16 | Holder, coolant line | 1 | 17127925694 | NoS | Shop at ECS Tuning | |||||
| 17 | Hose support | NW16 | 1 | 17127828681 | Shop at ECS Tuning | |||||
| 18 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 19 | Blind rivet threaded stud | 1 | 07146846903 | Shop at ECS Tuning | ||||||
| 20 | Hexagon screw for plastic | 2 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 21 | Expanding nut | L= 19.9MM | 2 | 07147306224 | Shop at ECS Tuning | |||||
| 22 | Screw self-tapping | M6X25- 10.9 ZNS | 2 | 34306771214 | $1.08 | Shop at ECS Tuning | ||||
| 23 | Torx bolt | M8X25 8.8 ZNS3 | 1 | 07119908535 | Shop at ECS Tuning | |||||
| 24 | Star-socket screw | BM6X25-U1-8.8 | 1 | 07119907490 | Shop at ECS Tuning |
