Coolant circuit, high-voltage system for BMW 5 Series G60 Sedan 523d (2025)

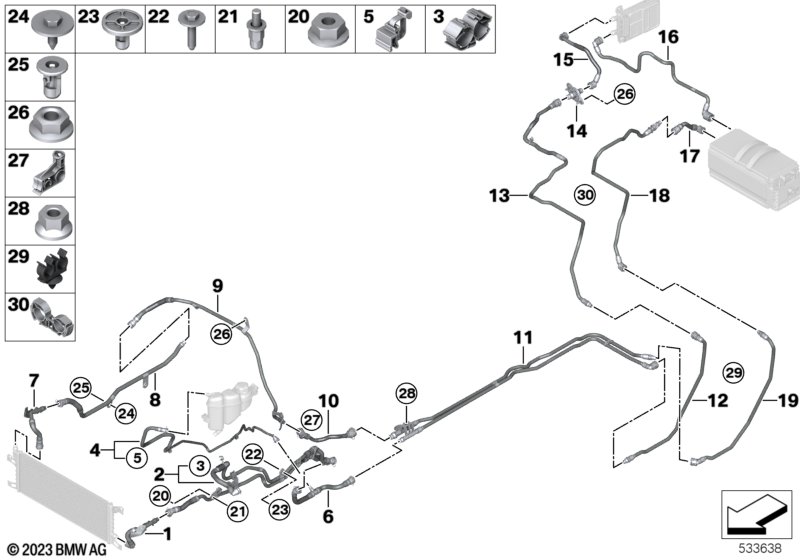

This Coolant circuit, high-voltage system technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 523d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Return line front | 1 | 17127925810 | Shop at ECS Tuning | ||||||
| 02 | Line low temperature coolant radiator | 1 | 03/2025 | 17129885518 | Shop at ECS Tuning | |||||
| 02 | Line low-temperature coolant radiator | 1 | 03/2025 | 17128490925 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Venting line, equalization tank | 1 | 03/2025 | 17128490919 | Shop at ECS Tuning | |||||
| 03 | Hose clamp, double | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 04 | Venting line, equalization tank | 1 | 03/2025 | 17127827493 | NoS | Shop at ECS Tuning | ||||
| 04 | Venting line, equalization tank | 1 | 03/2025 | 17128490919 | NoS | Shop at ECS Tuning | ||||
| Remove the clip and cable tie from item 2. |
||||||||||
| 06 | Rücklaufleitung elektr. Kühlmittelpumpe | 1 | 17129887166 | NoS | Shop at ECS Tuning | |||||
| 07 | Feed line front | 1 | 17127925811 | Shop at ECS Tuning | ||||||
| 08 | Feed line | 1 | 17129885514 | Shop at ECS Tuning | ||||||
| 09 | Return pipe | 1 | 17129885515 | Shop at ECS Tuning | ||||||
| 10 | Hose intake system | 1 | 17129885516 | Shop at ECS Tuning | ||||||
| 11 | Coolant pipe underfloor feed/return | 1 | 17129885539 | NoS | Shop at ECS Tuning | |||||
| 12 | Coolant pipe underfloor return | 1 | 17129885547 | NoS | Shop at ECS Tuning | |||||
| 13 | Coolant pipe underfloor return | 1 | 17129885579 | NoS | Shop at ECS Tuning | |||||
| 14 | Grommet coolant line | 1 | 17129885557 | Shop at ECS Tuning | ||||||
| 15 | Coolant pipe PCU48 return | 1 | 17129887168 | NoS | Shop at ECS Tuning | |||||
| 16 | Pipe BATT48 - PCU48 | 1 | 17129887167 | Shop at ECS Tuning | ||||||
| 17 | Hose BATT48 feed | 1 | 17129885554 | Shop at ECS Tuning | ||||||
| 18 | Coolant pipe underfloor feed | 1 | 17129885578 | NoS | Shop at ECS Tuning | |||||
| 19 | Coolant pipe underfloor feed | 1 | 17129885546 | Shop at ECS Tuning | ||||||
| 20 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 21 | Blind rivet threaded stud | 1 | 07146846903 | Shop at ECS Tuning | ||||||
| 22 | Hexagon screw for plastic | 2 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 23 | Expanding nut | L= 19.9MM | 2 | 07147306224 | Shop at ECS Tuning | |||||
| 24 | Hex bolt | TS5X17 SW8 D=22 | 2 | 07149126886 | Shop at ECS Tuning | |||||
| 25 | Expanding nut | L=18.4, DMAX=18 | 2 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 26 | Nut | M6 | 5 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 27 | Clip | D10 D15 | 1 | 17127101480 | Shop at ECS Tuning | |||||
| 28 | Nut | M6 | 1 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 29 | Dual clip | D=15MM | 4 | 17127935684 | Shop at ECS Tuning | |||||
| 30 | Line clip | 4 | 07148851655 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
