Cooling system coolant hoses for BMW MINI Cabrio F67 JCW (2025)

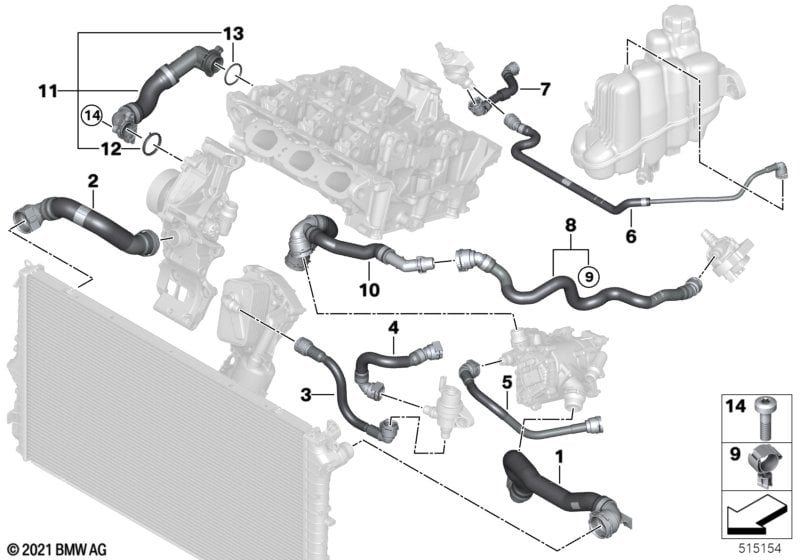

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator | 1 | 17125A6E1A9 | Shop at ECS Tuning | ||||||
| 02 | Hose radiator-water pump | 1 | 17125A0C5A4 | Shop at ECS Tuning | ||||||
| 03 | Pipe oil filter - shutoff valve | 1 | 17125A0C5A8 | Shop at ECS Tuning | ||||||
| 04 | Hose shutoff valve | 1 | 17125A0C5A7 | Shop at ECS Tuning | ||||||
| 05 | Pipe double-clutch transmission | 1 | 17125A0C5A6 | Shop at ECS Tuning | ||||||
| 06 | Line shutoff valve | 1 | 17125A6E1A4 | NoS | Shop at ECS Tuning | |||||
| 07 | Hose for cylinder head | 1 | 17125A0C5A2 | Shop at ECS Tuning | ||||||
| 08 | Hose electric coolant pump | 1 | 17125A0C5A9 | Shop at ECS Tuning | ||||||
| 09 | Clip | D=22-24 | 1 | 17128632053 | Shop at ECS Tuning | |||||
| 10 | Wire heat management module | 1 | 11537952845 | Shop at ECS Tuning | ||||||
| 11 | Line from coolant pump-cylinder head | 1 | 11537952843 | Shop at ECS Tuning | ||||||
| 12 | Gasket | 29,8X4,6X2,2 | 1 | 11538678045 | Shop at ECS Tuning | |||||
| 13 | O-ring | 28,7X2,5 | 1 | 11538674931 | Shop at ECS Tuning | |||||
| 14 | Countersunk screw | M6X20-8.8-ZNNIV | 5 | 07119907517 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
