Electrical components for BMW 5 Series G60 Sedan 530eX (2025)

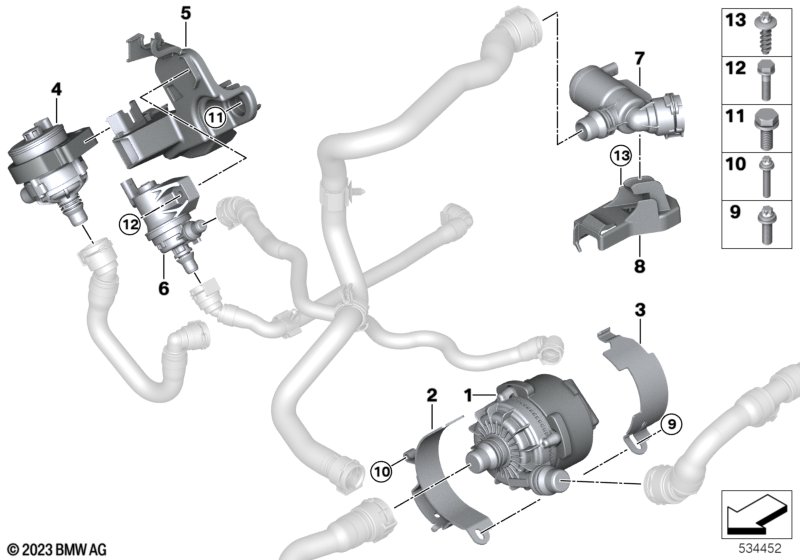

This Electrical components technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Auxiliary water pump | 1 | 11519455028 | Shop at ECS Tuning | ||||||
| 02 | Holder, electric coolant pump | 1 | 11515A070C7 | NoS | Shop at ECS Tuning | |||||
| 03 | Holder electric coolant pump | 1 | 11515A083B8 | NoS | Shop at ECS Tuning | |||||
| 04 | Auxiliary water pump | 1 | 11515A020E0 | Shop at ECS Tuning | ||||||
| 05 | Bracket for auxiliary water pump | 1 | 08/2025 | 11518740682 | NoS | Shop at ECS Tuning | ||||
| 06 | Shut-off valve | 1 | 11519896405 | Shop at ECS Tuning | ||||||
| 07 | Shutoff valve | 1 | 11515A13AA8 | NoS | Shop at ECS Tuning | |||||
| 08 | Shut-off valve bracket | 1 | 08/2025 | 11518740695 | NoS | Shop at ECS Tuning | ||||
| 09 | Star-socket screw | BM6X20-U1-8.8 | 1 | 07119907838 | Shop at ECS Tuning | |||||
| 10 | Star-socket screw | M6X30 | 1 | 11519908732 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X25-ZNNIV SI | 1 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 13 | ASA screw, self-threading | M6X18 | 1 | 11367609963 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 530eX Electrical components?
- This technical diagram illustrates the Electrical components within the Radiator group for the 5 Series G60 Sedan 530eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Auxiliary water pump (Part #11519455028).
- Which models use the hardware listed in this Electrical components?
- The hardware and components featured in the Electrical components are specific to the 5 Series G60 Sedan 530eX produced during 2025. These technical specifications ensure that parts like the Auxiliary water pump (11519455028) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electrical components assembly?
- Each item in the Electrical components corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 530eX, you can identify the Auxiliary water pump by locating its position on the schematic, which then links to the official BMW part number 11519455028 for the Radiator section.
