Coolant circuit, high-voltage system for BMW 5 Series G61 Touring 530e (2025)

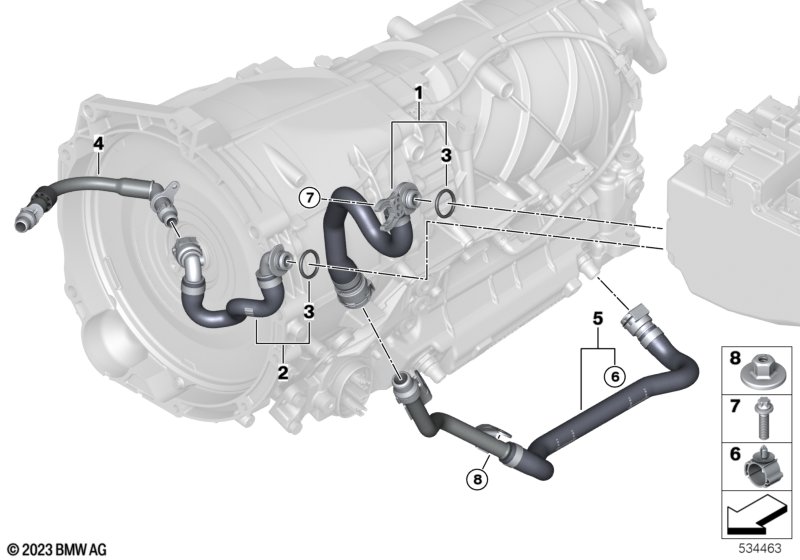

This Coolant circuit, high-voltage system technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant line battery charger | 1 | 17128645835 | Shop at ECS Tuning | ||||||
| 02 | Coolant line for charge air cooler | 1 | 17129845146 | NoS | Shop at ECS Tuning | |||||
| 03 | O-ring | 16,7X2,6 | 2 | 17128642529 | Shop at ECS Tuning | |||||
| 04 | Feed pipe coolant pump | 1 | 17125A0C959 | NoS | Shop at ECS Tuning | |||||
| 05 | Coolant line power electronics | 1 | 17127562052 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp | D=23MM | 2 | 17127619358 | Shop at ECS Tuning | |||||
| 07 | ASA screw | M6X20-8.8-ZNNIV | 1 | 07129907102 | Shop at ECS Tuning | |||||
| 08 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning |
