Coolant circuit, high-voltage system for BMW 4 Series G26 Gran Coupé LCI 430iX (2025)

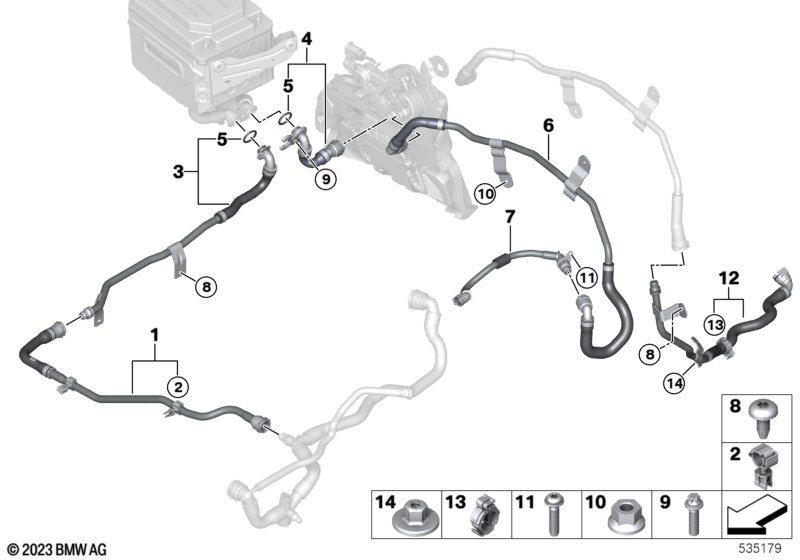

This Coolant circuit, high-voltage system technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé LCI 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feed line 48-volt battery | 1 | 17125A024B6 | NoS | Shop at ECS Tuning | |||||
| 02 | Hose bracket, rotating | 1 | 17128693288 | Shop at ECS Tuning | ||||||
| 03 | Line for fuel return, power electronics | 1 | 17128593777 | Shop at ECS Tuning | ||||||
| 04 | Line, fast forward battery charger | 1 | 17128593778 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 16,7X2,6 | 2 | 17128642529 | Shop at ECS Tuning | |||||
| 06 | Return pipe | 1 | 17125A3AE36 | NoS | Shop at ECS Tuning | |||||
| 07 | Feeder hose starter generator | 1 | 17125A3AE35 | NoS | Shop at ECS Tuning | |||||
| 08 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | Shop at ECS Tuning | |||||
| 09 | ASA screw | M6X20-8.8-ZNNIV | 1 | 07129907102 | Shop at ECS Tuning | |||||
| 10 | Nut | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 11 | Torx-bolt for plastic material | TS5X20 | 1 | 07119907480 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé LCI 430iX Coolant circuit, high-voltage system?
- This technical diagram illustrates the Coolant circuit, high-voltage system within the Radiator group for the 4 Series G26 Gran Coupé LCI 430iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Feed line 48-volt battery (Part #17125A024B6).
- Which models use the hardware listed in this Coolant circuit, high-voltage system?
- The hardware and components featured in the Coolant circuit, high-voltage system are specific to the 4 Series G26 Gran Coupé LCI 430iX produced during 2025. These technical specifications ensure that parts like the Feed line 48-volt battery (17125A024B6) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant circuit, high-voltage system assembly?
- Each item in the Coolant circuit, high-voltage system corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé LCI 430iX, you can identify the Feed line 48-volt battery by locating its position on the schematic, which then links to the official BMW part number 17125A024B6 for the Radiator section.
