Transmission oil cooler/oil cooler line for BMW 4 Series G22 Coupé LCI 430iX (2025)

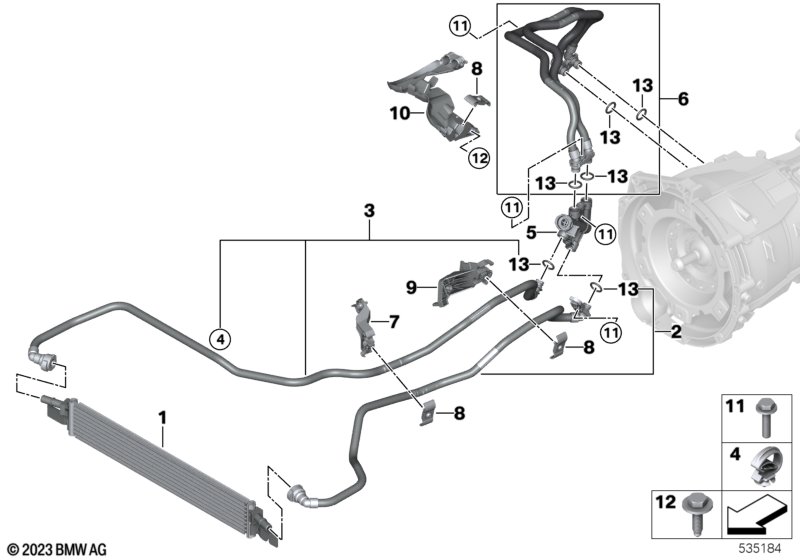

This Transmission oil cooler/oil cooler line technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission oil cooler | 1 | 17218852264 | Shop at ECS Tuning | ||||||
| 02 | Feed line transmission oil cooler | 1 | 17229454933 | Shop at ECS Tuning | ||||||
| 03 | Return line transmission oil cooler | 1 | 17229454932 | Shop at ECS Tuning | ||||||
| 04 | Clip | 1 | 61139322724 | Shop at ECS Tuning | ||||||
| 05 | Thermostat | 1 | 17229844577 | Shop at ECS Tuning | ||||||
| 06 | Transmission oil cooler line | 1 | 17229845906 | Shop at ECS Tuning | ||||||
| 07 | Holder transmission oil cooler line | 1 | 17228857056 | NoS | Shop at ECS Tuning | |||||
| 08 | Top shell for holder | 3 | 17228699987 | Shop at ECS Tuning | ||||||
| 09 | Holder transmission oil cooler line | 1 | 17228833437 | NoS | Shop at ECS Tuning | |||||
| 10 | Cover transmission oil cooler lines | 1 | 17228884487 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M6X20-PC-ZNS3 | 1 | 07119908088 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X25 UD15 | 5 | 17228678827 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X20-PC-ZNS3 | 1 | 07119908088 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Cover transmission oil cooler lines | X | 17228884487 | NoS | Shop at ECS Tuning | |||||
| 13 | O-ring | 13,94X2,62 | 6 | 07148851323 | Shop at ECS Tuning | |||||
