Coolant circuit, high-voltage system for BMW 4 Series G23 Convertible LCI M440i (2025)

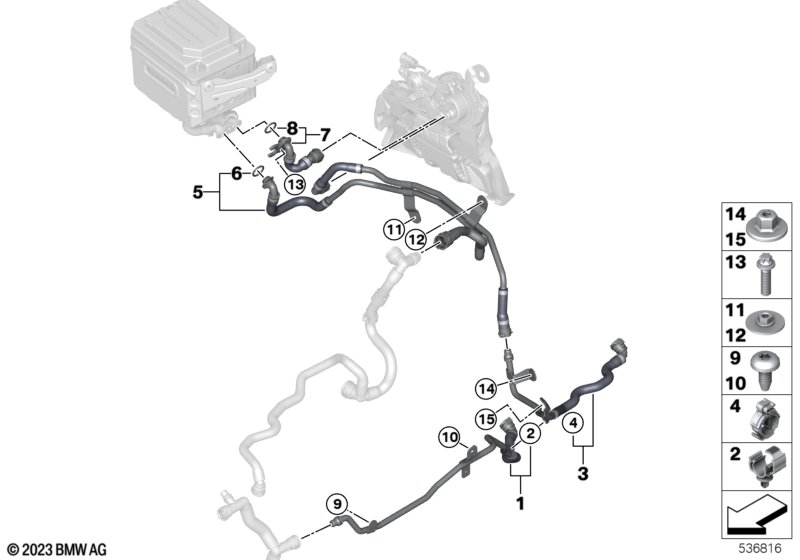

This Coolant circuit, high-voltage system technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Return line, automatic transmission | 1 | 17125A3B5D8 | NoS | Shop at ECS Tuning | |||||
| 02 | Hose clamp | D=14MM | 1 | 17128693287 | Shop at ECS Tuning | |||||
| 03 | Feed line automatic transmission | 1 | 17125A024B2 | NoS | Shop at ECS Tuning | |||||
| 04 | Hose clamp | 1 | 17123424326 | Shop at ECS Tuning | ||||||
| 05 | Feed and return line, bulkhead | 1 | 17125A3B5D9 | NoS | Shop at ECS Tuning | |||||
| 06 | O-ring | 16,7X2,6 | 1 | 17128642529 | Shop at ECS Tuning | |||||
| 07 | Line, fast forward battery charger | 1 | 17128593778 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 16,7X2,6 | 1 | 17128642529 | Shop at ECS Tuning | |||||
| 09 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| 10 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M6-8-ZNS3 | 1 | 13748595109 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | M6-8-ZNS3 | 1 | 13748595109 | Shop at ECS Tuning | |||||
| 13 | ASA screw | M6X20-8.8-ZNNIV | 1 | 07129907102 | Shop at ECS Tuning | |||||
| 14 | Plastic capnut with washer | D=22MM | 1 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Plastic capnut with washer | D=22MM | 1 | 07147169847 | $0.36 | Shop at ECS Tuning |
