Charge-air cooling for BMW 3 Series E46 320d (2001)

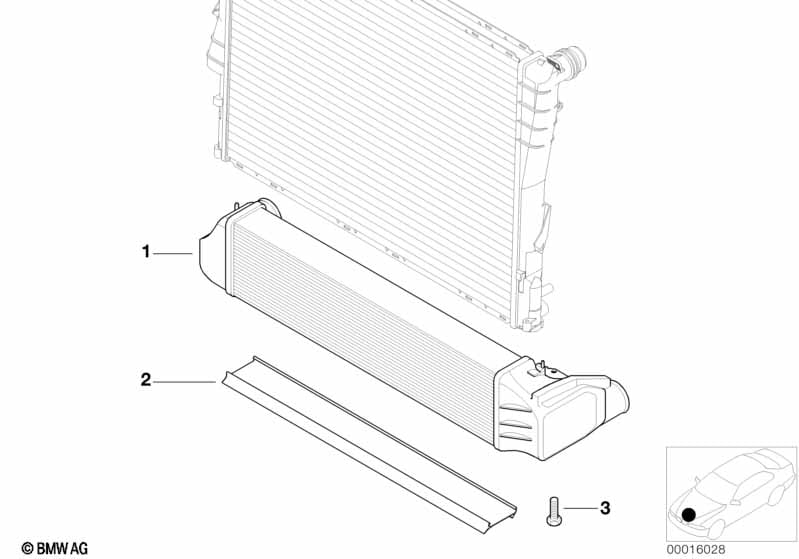

This Charge-air cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge-air cooler | 18X8,4X3 | 1 | 09/2001 | 17512246795 | $330.93 | Shop at ECS Tuning | |||
| 02 | Airduct bracket | 1 | 09/2001 | 17112246796 | Shop at ECS Tuning | |||||
| 03 | Screw self-tapping | D6X20 ZNS3 | 2 | 09/2001 | 17117536971 | $1.12 | Shop at ECS Tuning |
