Charge-air cooling for BMW 3 Series E46 330d (2003)

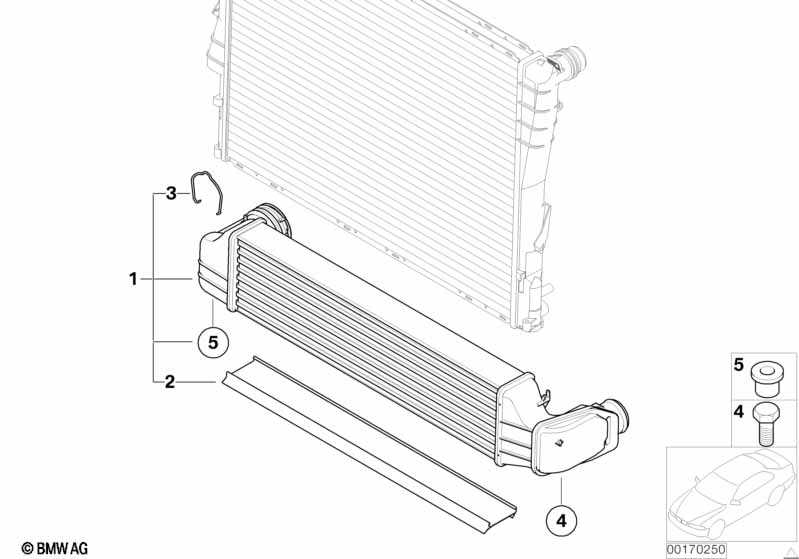

This Charge-air cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge-air cooler | 1 | 03/2003 | 17517793370 | Shop at ECS Tuning | |||||
| 02 | Airduct bracket | 1 | 09/2001 | 17112246796 | Shop at ECS Tuning | |||||
| 03 | Spring clip | 2 | 03/2003 | 17517787821 | Shop at ECS Tuning | |||||
| 04 | Screw self-tapping | D6X20 ZNS3 | 2 | 09/2001 | 17117536971 | $1.12 | Shop at ECS Tuning |
