Exhaust pipe front for BMW 3 Series E21 320i (1977)

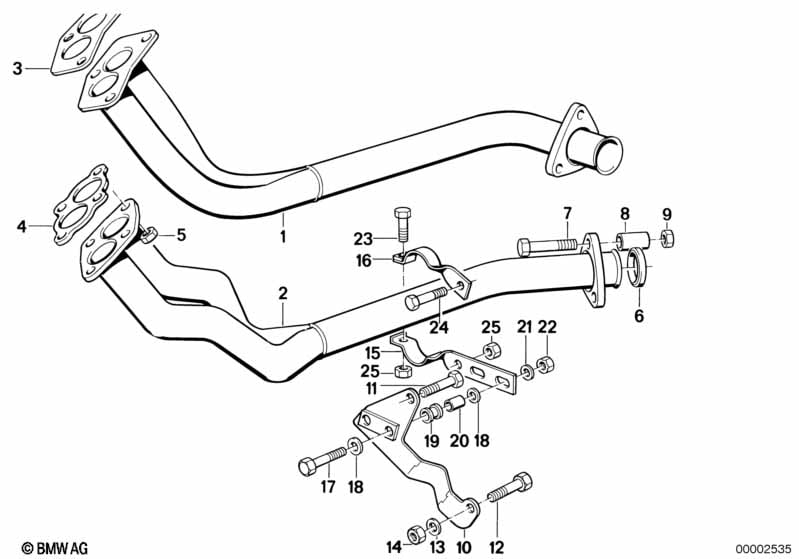

This Exhaust pipe front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.

Exhaust pipe front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
California version
=No
01 Exhaust pipe 1 09/1979 18111245203 $226.86 Shop at ECS Tuning
For vehicles with
National version japan
and
California version
L807A=Yes

=Yes
01 Exhaust pipe front 1 09/1979 18111245765 $158.63 ENDED Shop at ECS Tuning
For vehicles with
California version
=No
03 Gasket Asbestos Free 1 09/1979 18111728363 $17.87 Shop at ECS Tuning
For vehicles with
National version japan
and
California version
L807A=Yes

=Yes
03 Gasket Asbestos Free 1 09/1979 18111245500 $5.19 Shop at ECS Tuning
05 Hex nut M10 3 09/1979 18301737774 $1.65 Shop at ECS Tuning
06 Gasket ring 47MM 1 09/1979 18111175311 $8.37 Shop at ECS Tuning
For vehicles with
California version
=No
07 Hexagon bolt M8X65 3 09/1979 07119903018 Shop at ECS Tuning
07 Hex bolt M8X65 3 09/1979 41117006311 $6.28 Shop at ECS Tuning
For vehicles with
National version japan
and
California version
L807A=Yes

=Yes
07 Hex bolt M8X40-ZNNIV SI 3 09/1979 07119905549 $1.05 Shop at ECS Tuning
08 Bush 3 09/1979 32111114805 $3.82 Shop at ECS Tuning
09 Hex nut wiht flange M8 3 09/1979 18307620549 Shop at ECS Tuning
10 Holder 1 09/1979 18211245825 $6.00 Shop at ECS Tuning
11 Hex bolt M8X50 1 09/1979 07119904533 $2.84 Shop at ECS Tuning
12 Hex bolt M8X40-ZNNIV SI 1 09/1979 07119905549 $1.05 Shop at ECS Tuning
13 Washer 8,4X16X1,6-ZNNV 1 09/1979 07119907030 Shop at ECS Tuning
14 Hex nut M8-8-ZNNIV SI 1 09/1979 07119905515 $0.16 Shop at ECS Tuning
15 Exhaust support 1 09/1979 18211245957 $6.46 Shop at ECS Tuning
16 Bow 1 09/1979 18211245956 $2.59 Shop at ECS Tuning
17 Hex bolt M6X30-8.8-ZNS3 2 09/1979 07119904116 $0.38 Shop at ECS Tuning
18 Washer 6 09/1979 18214690192 $0.20 Shop at ECS Tuning
19 Rubber grommet 2 09/1979 18211245439 $5.82 ENDED Shop at ECS Tuning
20 Spacer sleeve 2 09/1979 18214690169 $6.18 Shop at ECS Tuning
21 Spring washer Black B6-ZN 2 09/1979 07119932073 $0.38 Shop at ECS Tuning
22 Hex nut M6-8-ZNNIV SI 2 09/1979 07119905543 $0.38 Shop at ECS Tuning
23 Hex bolt M8X25-8.8-ZNNIV 1 09/1979 07119906181 $0.55 Shop at ECS Tuning
23 Hex bolt M8X25 1 09/1979 07119913653 $0.47 Shop at ECS Tuning
24 Hex bolt M8X16-10.9-PHR 1 09/1979 07119913612 $0.62 Shop at ECS Tuning
25 Self-locking hex nut M8-8-ZNNI SI 2 09/1979 07129906196 $1.60 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
