Suspension parts exhaust for BMW 5 Series E12 528 (1976)

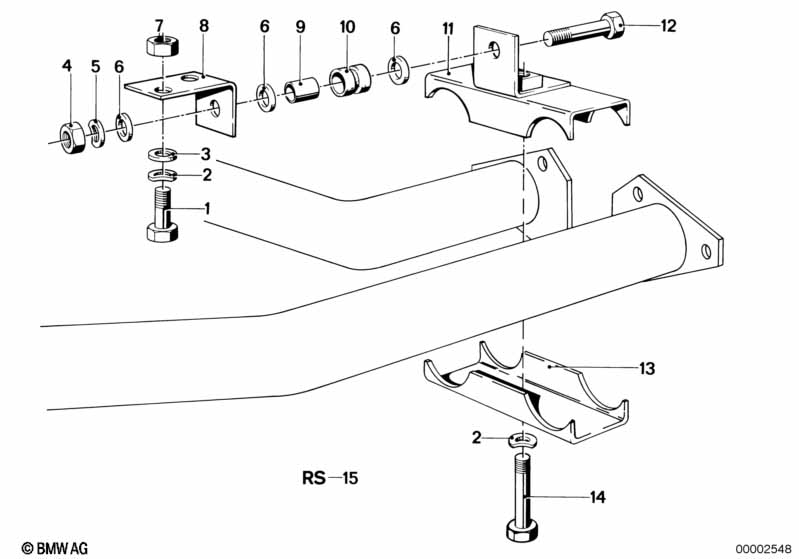

This Suspension parts exhaust technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M8X35 | 1 | 05/1976 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
| 02 | Wave washer | 8,4X15-ZNS3 | 2 | 05/1976 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 03 | Washer | 8,4X16X1,6-ZNNV | 2 | 05/1976 | 07119907030 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M6-8-ZNNIV SI | 1 | 05/1976 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 05 | Spring washer Black | B6-ZN | 1 | 05/1976 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 06 | Washer | 3 | 05/1976 | 18214690192 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNNIV SI | 1 | 05/1976 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 08 | Support | 1 | 05/1976 | 18211107515 | $12.95 | ENDED | Shop at ECS Tuning | |||
| 09 | Spacer sleeve | 1 | 05/1976 | 18214690169 | $6.18 | Shop at ECS Tuning | ||||
| 10 | Joint sleeve | 1 | 05/1976 | 18211712091 | $2.86 | Shop at ECS Tuning | ||||
| 11 | Carrier | 1 | 05/1976 | 18211107517 | $14.96 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 05/1976 | 07119904116 | $0.38 | Shop at ECS Tuning | |||
| 13 | Pipe clamp | 1 | 05/1976 | 18211246379 | $5.37 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X70 | 1 | 05/1976 | 07119912800 | $2.18 | Shop at ECS Tuning | |||
| 15 | Set mounting parts | 1 | 05/1976 | 18211245388 | ENDED | Shop at ECS Tuning |
